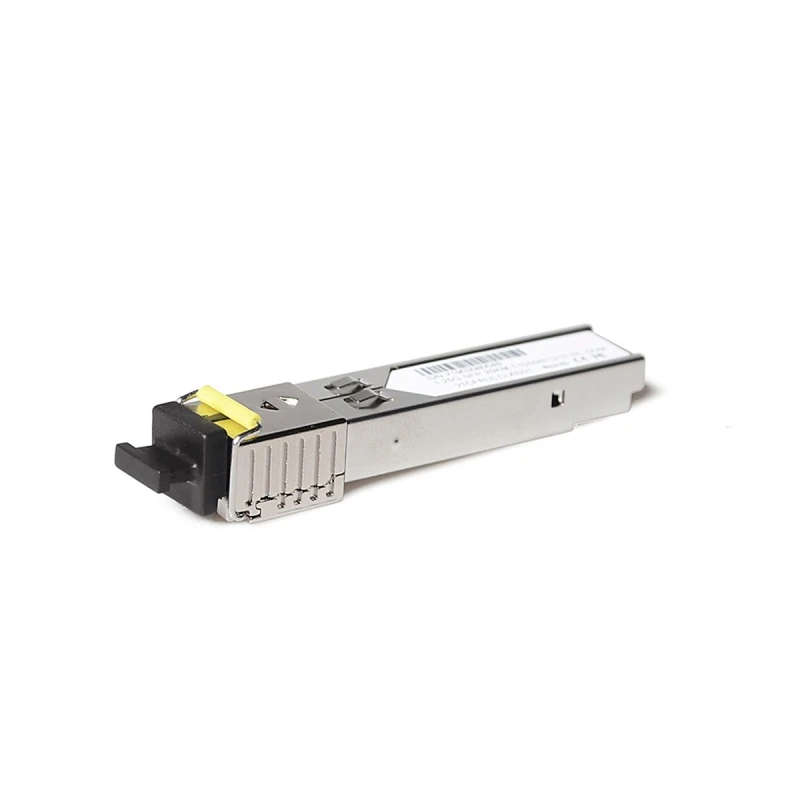

1.25G SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card etc. Featuring low power consumption, high speed, this easy to install, hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
With DDM function.
Low power dissipation.
Commercial Temperature Range: 0~+70℃.
Hot-Pluggable SFP Footprint.
Gigabit Ethernet.
Fiber Channel.
Switch to Switch Interface.
Other Optical Links
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
|---|---|---|---|---|---|---|---|
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1310/Rx1550nm | 3KM | -9~-3dBm | ≤‑20dBm | FP | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1550/Rx1310nm | 3KM | -9~-3dBm | ≤‑20dBm | FP | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1310/Rx1550nm | 10KM | -9~-3dBm | ≤‑20dBm | FP | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1550/Rx1310nm | 10KM | -9~-3dBm | ≤‑20dBm | DFB | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1310/Rx1550nm | 40KM | -5~0dBm | ≤‑24dBm | DFB | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1550/Rx1310nm | 40KM | -5~0dBm | ≤‑24dBm | DFB | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1490/Rx1550nm | 80KM | 0~5dBm | ≤‑26dBm | DFB | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1550/Rx1490nm | 80KM | 0~5dBm | ≤‑26dBm | DFB | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1490/Rx1550nm | 120KM | 0~5dBm | ≤‑31dBm | DFB | LC/SC |
| 1.25Gb/s SFP BIDI | 1.25Gb/s | Tx1550/Rx1490nm | 120KM | 0~5dBm | ≤‑31dBm | DFB | LC/SC |
