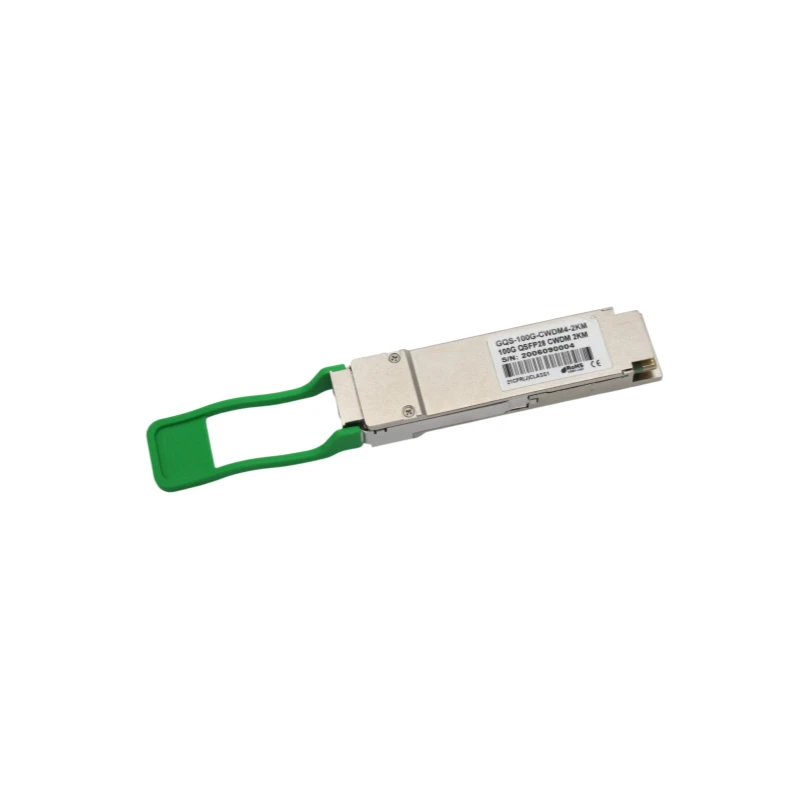

100G QSFP28 CWDM4 1310nm 2KM Optical Transceiver Module

100G QSFP28 CWDM4 1310nm 2KM Optical Transceiver Module

100G QSFP28 CWDM4 1310nm 2KM Optical Transceiver Module

OPTEKCOM 100G transceiver module portfolio offers a wide variety of high-density and low-power 100G connectivity options for data center, enterprise and telecom application. It includes 100G QSFP28 modules, 100G CFP/CFP2/CFP4 modules, 100G DACs/AOCs and their breakout cables. Featured products such as 100G and OTU4 QSFP28 Dual Rate Modules and 100G QSFP28 Single Lambda modules are also available for choice.

Features

Hot Pluggable QSFP28 form factor.
Stability and reliability.
Low power consumption.

Application

100G Ethernet.
Data center.
InfiniBand Interconnects.

Specification

Items	Data Rate	Wavelength	Fiber	Distance	Optical	Tx Power	Rx Sens.	Temp.
Items	(bps)	(nm)	Type	Distance	Comp.	(dBm)	(dBm)	(℃)
QSFP28 SR4	100G	850	8x MMF	OM3 70 m	VCSEL	-6~2.4	-10.3~2.4	0~70
QSFP28 SR4	100G	850	8x MMF	OM4 100 m	VCSEL	-6~2.4	-10.3~2.4	0~70
QSFP28 IR4 PSM	100G	1310	8x SMF	2 km	DML/PIN	-8.4~2.4	-11	0~70
QSFP28 CWDM4	100G	CWDM	2x SMF	2 km	DML/PIN	-6.5~2.5	-10~2.5	0~70
QSFP28 IR4	100G	LWDM	2x SMF	2 km	DML/PIN	-6.5~2.5	-10~2.5	0~70
LR4	100G	LWDM	2x SMF	10 km	DML/PIN	-4.3~4.5	-10.6~4.5	0~70
ELR4+	100G	LWDM	2x SMF	20 km	DML/PIN	-2.5~4.5	-14.5~4.5	0~70
ER4*	100G	LWDM	2x SMF	30~40 km	EML/APD	-2.5~2.9	-20.5~-3.5	0~70
