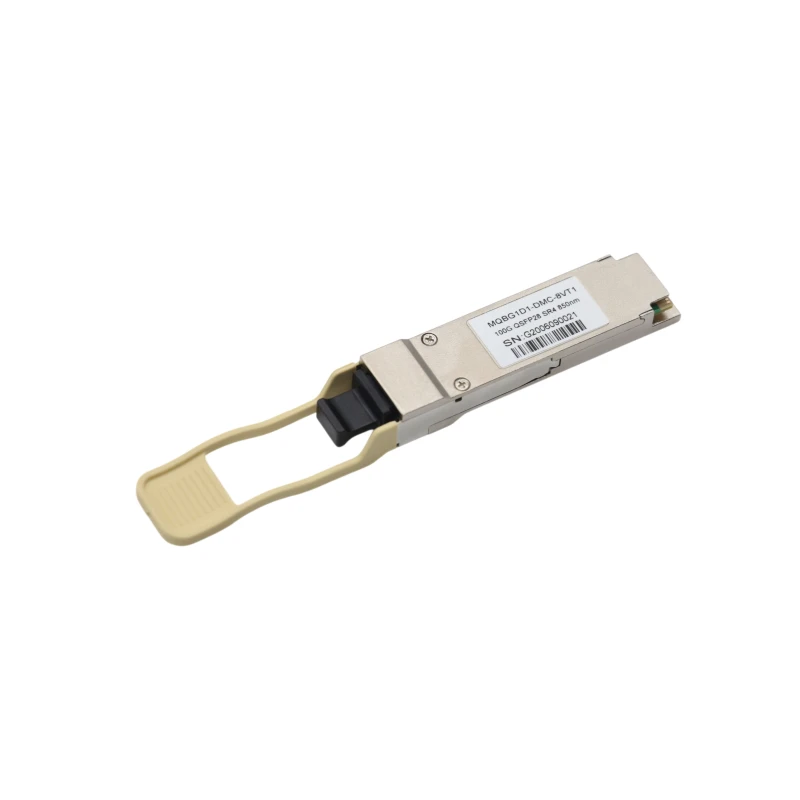

100G SR4 QSFP28 100M 850nm MTP/MPO Optical Transceiver

100G SR4 QSFP28 100M 850nm MTP/MPO Optical Transceiver

100G SR4 QSFP28 100M 850nm MTP/MPO Optical Transceiver

OPTEKCOM 100G transceiver module portfolio offers a wide variety of high-density and low-power 100G connectivity options for data center, enterprise and telecom application. It includes 100G QSFP28 modules, 100G CFP/CFP2/CFP4 modules, 100G DACs/AOCs and their breakout cables. Featured products such as 100G and OTU4 QSFP28 Dual Rate Modules and 100G QSFP28 Single Lambda modules are also available for choice.

Features

Hot Pluggable QSFP28 form factor.
Single MPO12 receptacle
Low power consumption.

Application

100GBASE-SR4 100G Ethernet.
Data center.

Specification

Items	Data Rate	Wavelength	Fiber	Distance	Optical	Tx Power	Rx Sens.	Temp.
Items	(bps)	(nm)	Type	Distance	Comp.	(dBm)	(dBm)	(℃)
100G‑QSFP28 Transceiver	100G	850nm	MMF	100M	VCSEL	-8~2	≤‑10.3
100G‑QSFP28 Transceiver	100G	CWDM4	SMF	2KM	DML	-6~2	≤‑10.6
100G‑QSFP28 Transceiver	100G	LWDM4	SMF	10KM	DML	-4~4	≤‑10.6
100G‑QSFP28 Transceiver	100G	LWDM4	SMF	30KM	DML	-2~4	≤‑18
100G‑QSFP28 Transceiver	100G	LWDM4	SMF	40KM	EML	-2~4	≤‑18
100G‑QSFP28 Transceiver	100G	LWDM4	SMF	80KM	EML	2~6	<-28
