OPTEKCOM 100G transceiver module offers a wide variety of high-density and low-power 100G connectivity options for data center, enterprise and telecom application.They have the characteristics of low power consumption, high density and the like, and is beneficial to increasing the capacity and port density of the data center, and reducing the power consumption.
Hot Pluggable QSFP28 form factor. Low power consumption.
High stability and compatibility.
100GBASE-LR4 100G Ethernet. Data Center Solution
Infiniband QDR and DDR interconnects
| Items | Data Rate | Wavelength | Fiber | Distance | Optical | Tx Power | Rx Sens. | Temp. |
|---|---|---|---|---|---|---|---|---|
| (bps) | (nm) | Type | Comp. | (dBm) | (dBm) | (℃) | ||
| QSFP28 SR4 | 100G | 850 | 8x MMF | OM3 70 m | VCSEL | -6~2.4 | -10.3~2.4 | 0~70 |
| OM4 100 m | ||||||||
| QSFP28 IR4 PSM | 100G | 1310 | 8x SMF | 2 km | DML/PIN | -8.4~2.4 | -11 | 0~70 |
| QSFP28 CWDM4 | 100G | CWDM | 2x SMF | 2 km | DML/PIN | -6.5~2.5 | -10~2.5 | 0~70 |
| QSFP28 IR4 | 100G | LWDM | 2x SMF | 2 km | DML/PIN | -6.5~2.5 | -10~2.5 | 0~70 |

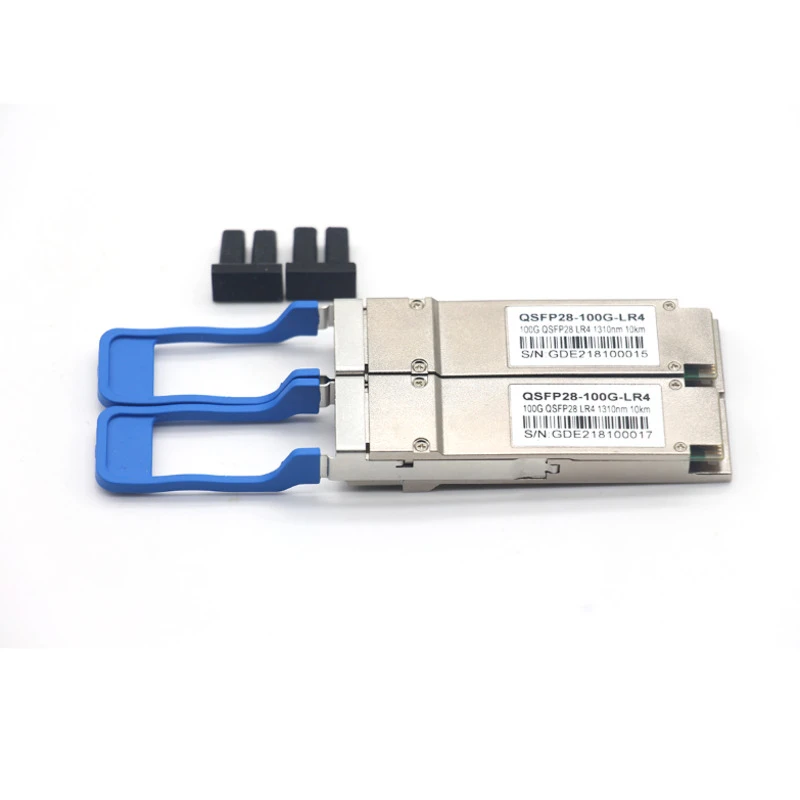

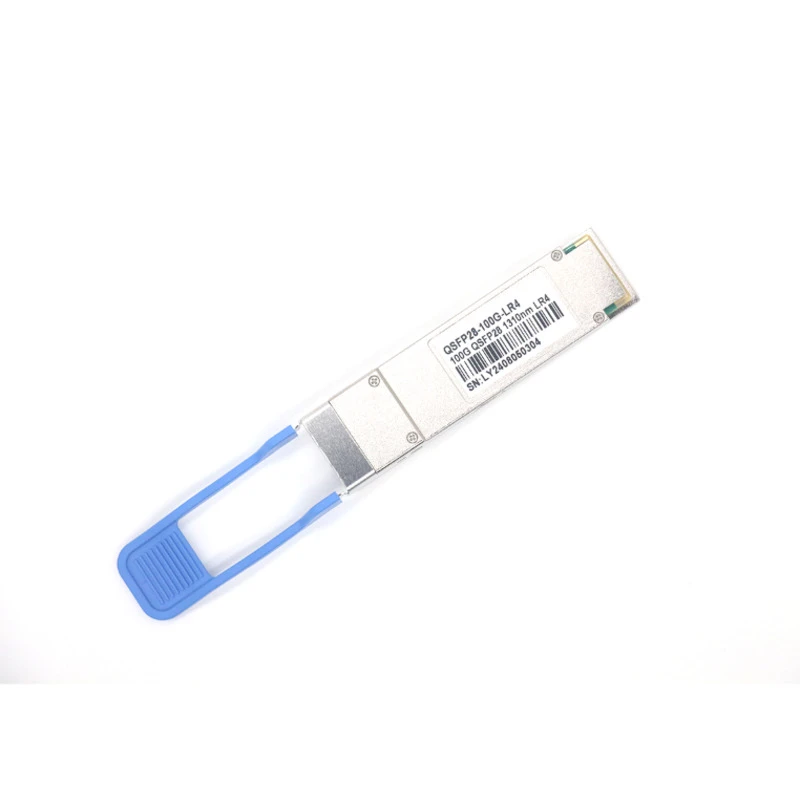

| LR4 | 100G | LWDM | 2x SMF | 10 km | DML/PIN | -4.3~4.5 | -10.6~4.5 | 0~70 |
| ELR4+ | 100G | LWDM | 2x SMF | 20 km | DML/PIN | -2.5~4.5 | -14.5~4.5 | 0~70 |
| ER4* | 100G | LWDM | 2x SMF | 30~40 km | EML/APD | -2.5~2.9 | -20.5~-3.5 | 0~70 |
