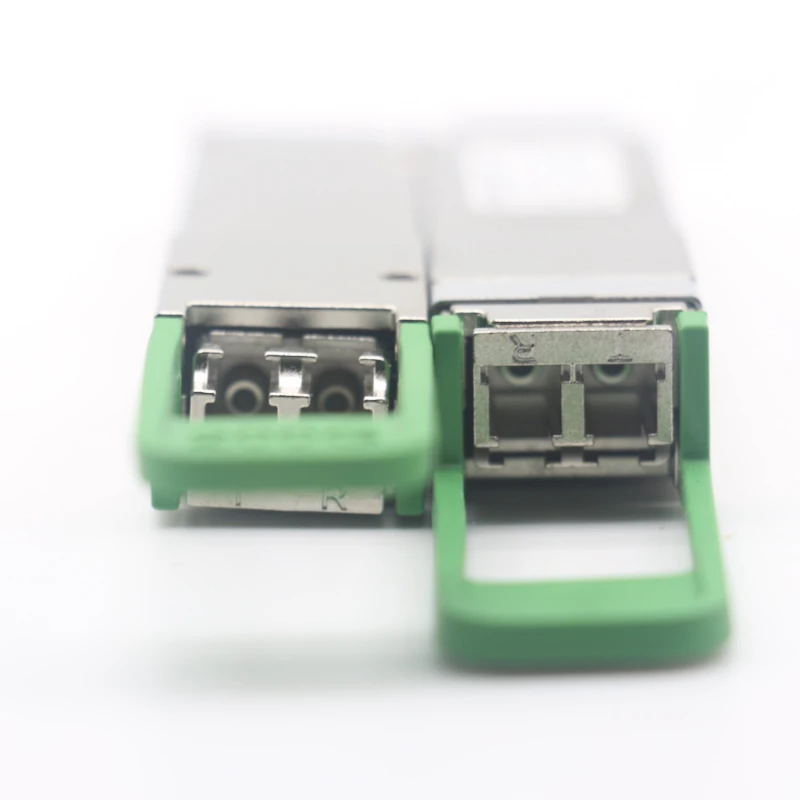

200Gb/s QSFP56/QSFP-DD Optical Transceiver complies with the CMIS4.04, QSFP MSA, IEEE 802.3bs and operates according to the InfiniBand IBTA specification, and it is designed for use in 200Gb/s HDR InfiniBand applications.
Hot Pluggable QSFP-DD Form Factor
Max. Power Consumption 4.5W
High-speed Electrical Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Data Center Interconnects
Infiniband Interconnects
2×100GBASE-SR4 Ethernet
Switch & Router Connections
NVLink Interconnects
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
|---|---|---|---|---|---|---|---|
| 200G‑QSFP56 Transceiver | 200Gb/s | 850nm | 100M | -6.5~4dBm | ≤‑5.4dBm | VCSEL | MPO |
| 200G‑QSFP56 Transceiver | 200Gb/s | CWDM4 | 2KM | -4~5dBm | ≤‑6dBm | DML | LC |
| 200G‑QSFP56 Transceiver | 200Gb/s | LWDM4 | 10KM | -4~5dBm | ≤‑8.2dBm | DML | LC |
| 200G‑QSFP‑DD Transceiver | 200Gb/s | 850nm | 100M | -8.4~2.4dBm | ≤‑10.3dBm | VCSEL | MPO |
