Hot Pluggable QSFP-DD Form Factor
Compliant with QSFP-DD MSA CMIS Rev4.0, OIF 56G PAM4
High-speed Electrical Compliant
Low power consumption
400G Ethernet
Infiniband Interconnects
Data Center Interconnects
NVLink Interconnects
AI
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
|---|---|---|---|---|---|---|---|

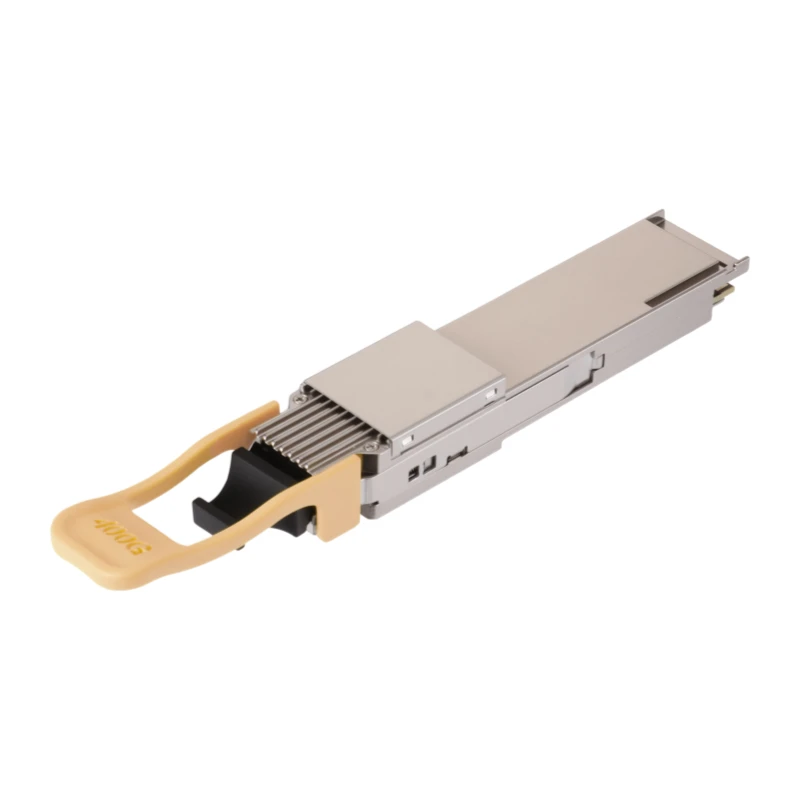

| 400Gb/s QSFP‑DD Transceiver | 400Gb/s | 850nm | 100M | -6~4dBm | -7.9~4dBm | VCSEL | MTP/MPO |
| 400Gb/s QSFP‑DD Transceiver | 400Gb/s | 1310nm | 500M | -2.9~4dBm | -5.9~4dBm | DFB | MTP/MPO |
| 400Gb/s QSFP‑DD Transceiver | 400Gb/s | 1271nm,1291nm,1311nm,1331nm | 10KM | -2.8~4dBm | -9.1~4dBm | CWDM EML | LC |
| 400Gb/s QSFP‑DD Transceiver | 400Gb/s | 1310nm | 40KM | -0.6~5.6dBm | -16.1~‑3.4dBm | LWDM EML | LC |
