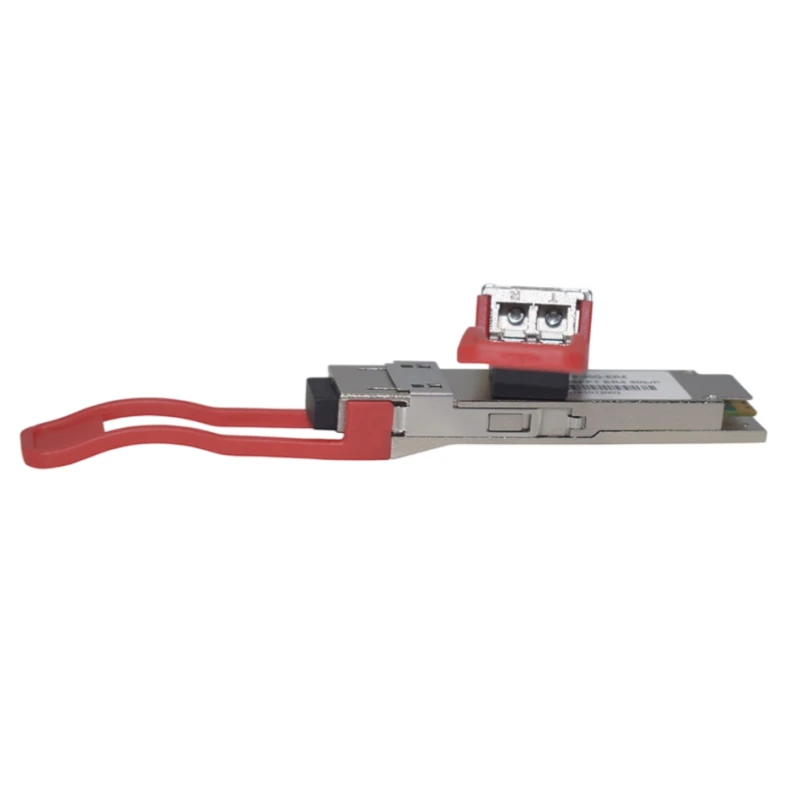

40G QSFP+ ER4 1310nm 40KM Optical Transceiver Module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ MSA compliant
Up to 40km transmission
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
| Model | Rate | Wavelength | Transmission Distance | Output Opt. Pwr. | Rx. Sensitivity | Laser | Interface |
|---|---|---|---|---|---|---|---|
| QSFP‑40G‑SR4 | 40Gb/s | 850nm | 150M | MPO | |||
| QSFP‑40G‑LR4 | 40Gb/s | 1270~1330nm | 10KM | LC | |||
| QSFP‑40G‑PSM‑LR4 | 40Gb/s | 1310nm | 10KM | MPO | |||
| QSFP‑40G‑LR4 20KM | 40Gb/s | 1270~1330nm | 20KM | LC | |||
| QSFP‑40G‑ER4 25~30KM | 40Gb/s | 1270~1330nm | 25~30KM | LC | |||
| QSFP‑40G‑ER4 40KM | 40Gb/s | 1270~1330nm | 40KM | LC | |||
| QSFP‑40G‑ZR4 60KM | 40Gb/s | 60KM | LC | ||||
| QSFP‑40G‑ZR4 80KM | 40Gb/s | 80KM | LC |
