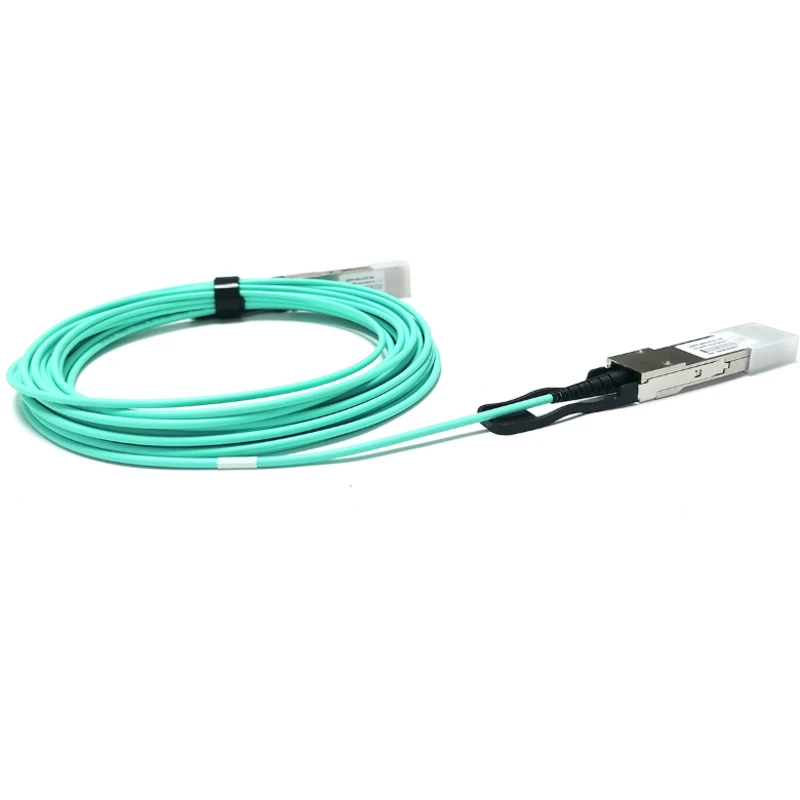

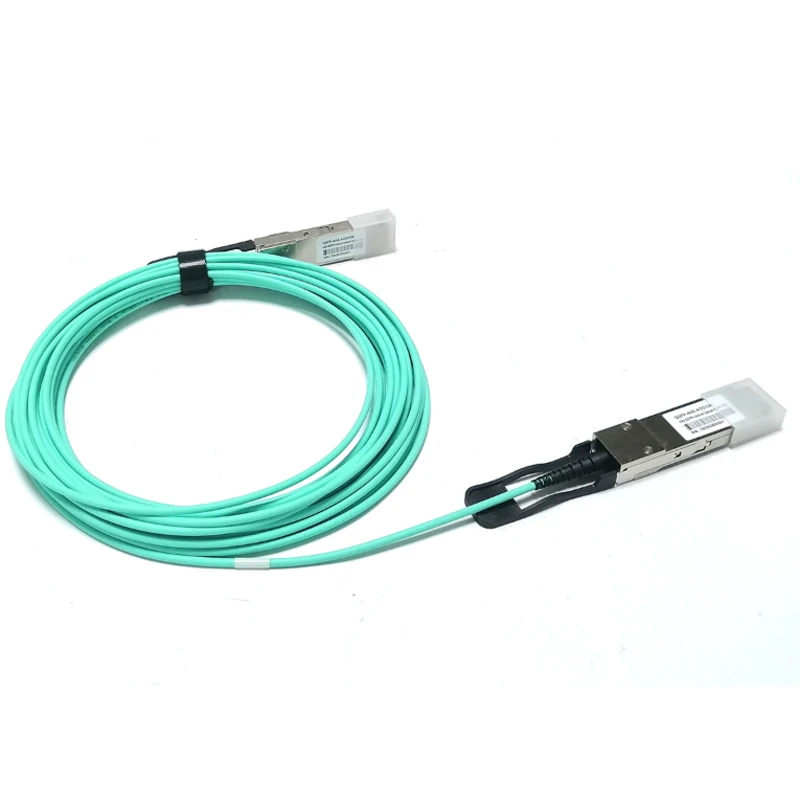

QSFP to QSFP Active Optical Cables is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.OPTEKCOM 40G QSFP+ AOC active optic cables are designed for 40G Ethernet links reach up to 300m (OM3) or 400m (OM4) over Multi-Mode Fiber (MMF).
Hot pluggable QSFP packaging 4-channel full duplex active optical cable
850nm VCSEL laser and PIN photodetecto Transmission distance support of 1-100m
Complies with SFF-8436, SFF-8636, SFF-8665 Meet EMI and ESD requirements
Power supply voltage 3.3V RoHS compliant
10G/40G Ethernet (10G/40GbE) . Proprietary high speed, high density data transmission.
Switch and router high speed backplane interconnect. High performance computing, server and data storage.
| Description | 40G QSFP+ to QSFP+ AOC |
|---|---|
| Data Rate | 40Gbps to 40Gbps |
| Form Factor | QSFP+ to QSFP+ |
| Reach | 70m(OM3) or 100m(OM4) |
| Power Consumption | ≤ 1.5W |
| Wavelength | 850nm |
| Component | VCSEL + PIN |
| Supply Voltage | 3.3V |
| Case Temperature | 0°C to 70°C |
| Protocol | Ethernet,IB |
| Length | 1m 3m 5m 7m 10m 15m 20m |
