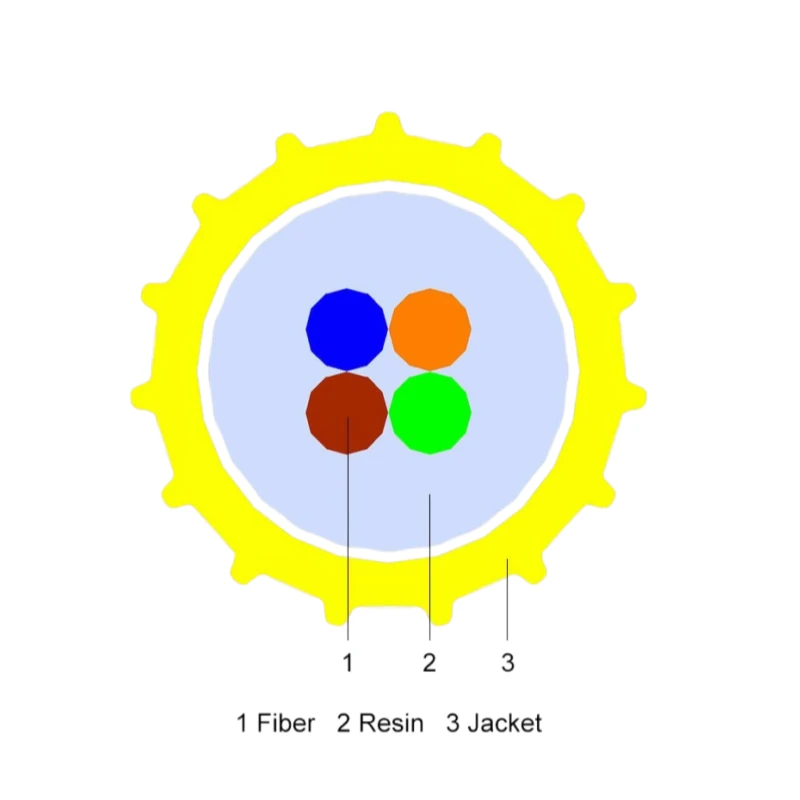

The Enhanced Performance Fiber Unit (EPFU) is a miniature optical fiber cable developed for air-blown installation into microducts using compressed air. It is ideal for access networks where scalability, speed of deployment, and minimal civil work are essential.
2,4,6,8 and 12 fibres options.
Stable structure, good mechanical and temperature
Designed with special grooves to adavance blowing distance
Light weight and proper stiffness, repeat installation
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.
FTTx
Telecommunication
Optical Fiber Communication
| Items | 2 Fibres | 4 Fibres | 6 Fibres | 8 Fibres | 12 Fibres | |
|---|---|---|---|---|---|---|
| Outer Diameter (mm) | 1.15（±0.05）mm | 1.15（±0.05）mm | 1.35（±0.05）mm | 1.50（±0.05）mm | 1.65（±0.05）mm | |
| Weight (g/m) | 1.0 | 1.0 | 1.3 | 1.8 | 2.2 | |
| Min Bend radius (mm) | 50 | 50 | 60 | 80 | 80 | |
| Temperature(℃) | Storage | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 |
| Operation | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | |
| Installation | -5 ~ +50 | -5 ~ +50 | -5 ~ +50 | -5 ~ +50 | -5 ~ +50 | |
