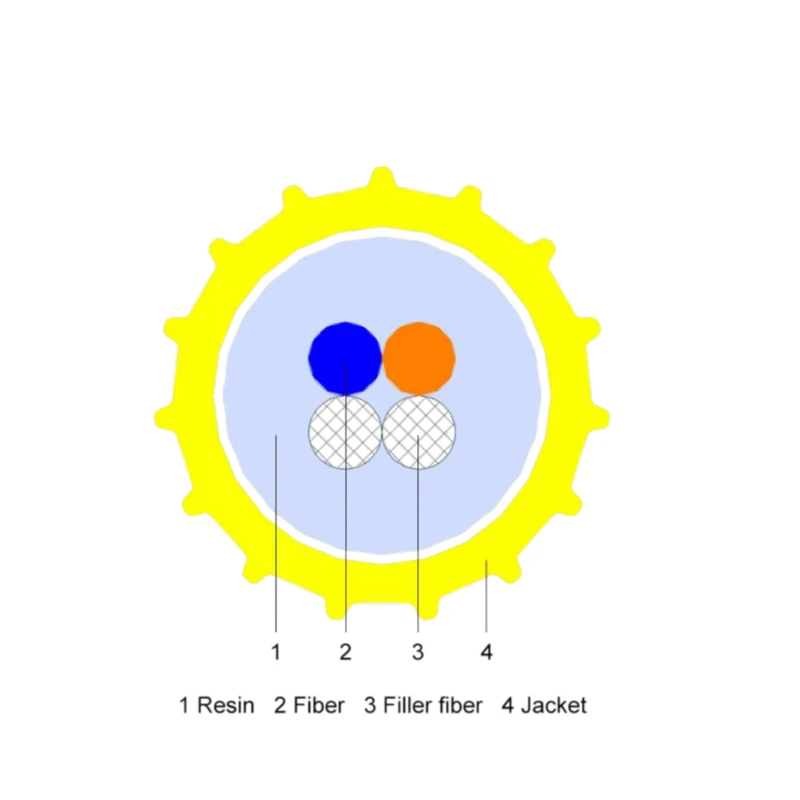

Air Blown Fiber Cable EPFU Fibre Unit is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow.It can be blown into the microduct of 5.0/3. 5mm. The fibres are coated with a soft acrylate resin which provides excellentdimensional and thermal stability to cushion th e fibres, in addition, the r esin can be e asily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction.
2,4,6,8 and 12 fibres options.
Stable structure, good mechanical and temperature
Designed with special grooves to adavance blowing distance
Light weight and proper stiffness, repeat installation
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.
FTTx
Telecommunication
Optical Fiber Communication
| Items | 2 Fibres | 4 Fibres | 6 Fibres | 8 Fibres | 12 Fibres | |
|---|---|---|---|---|---|---|
| Outer Diameter (mm) | 1.15（±0.05）mm | 1.15（±0.05）mm | 1.35（±0.05）mm | 1.50（±0.05）mm | 1.65（±0.05）mm | |
| Weight (g/m) | 1.0 | 1.0 | 1.3 | 1.8 | 2.2 | |
| Min Bend radius (mm) | 50 | 50 | 60 | 80 | 80 | |
| Temperature(℃) | Storage | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 |
| Operation | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | -30 ~ +70 | |
| Installation | -5 ~ +50 | -5 ~ +50 | -5 ~ +50 | -5 ~ +50 | -5 ~ +50 | |
