Air Blown Fiber Optic Cable

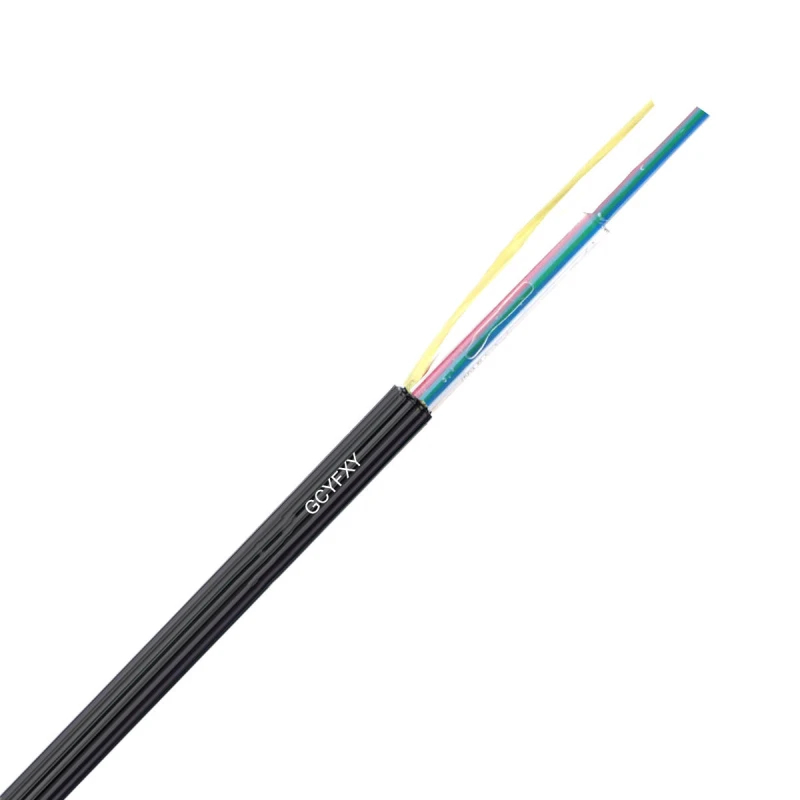

Non-Metallic Micro Duct Air Blowing Optical Fiber Cable HDPE Jacket G657A2
Non-Metallic Micro Duct Air Blowing Optical Fiber Cable HDPE Jacket G657A2
Non-Metallic Micro Duct Air Blowing Optical Fiber Cable HDPE Jacket G657A2
Non-Metallic Micro Duct Air Blowing Optical Fiber Cable HDPE Jacket G657A2

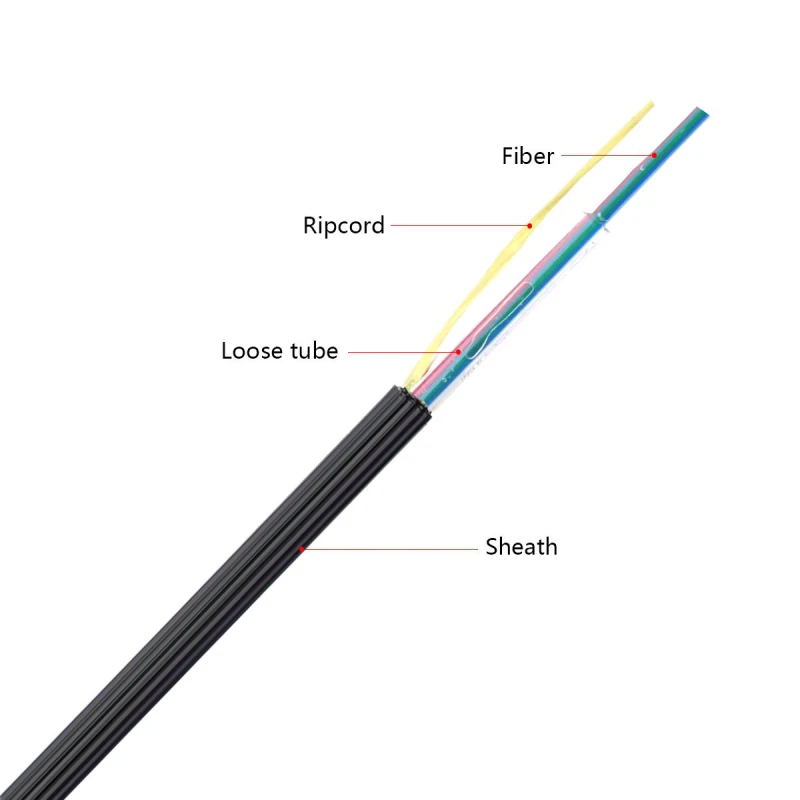

Micro duct air blowing fiber optic cable GCYFY is featured with small diameter, light weight, low friction, excellent softness and high fiber density, which can imporve the laying efficiency and save construction cost. it is comprised of outside plant (OSP) loose tube fiber optic cables that are optimized for air-jetting into single or bundled micro-duct pathways. The product is constructed using gel-filled buffer tubes that are SZ-stranded around a central strength with an overall outer HDPE jacket. The fiber count is available with 12-fibers up to 432-fibers.

Features

Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental.
Structure Innovation in sheath, enhancing the blowing performance.

Application

FTTx Solution
LAN communication

Specification
Fiber Counts 2‑24F
Loose Tube Materials:PBT
OD(mm):2.8±0.1MM
Fiber per tube:2‑24F
Supporting Member Aramid yarn
Sheath Material:HDPE
Color:Black
Diameter:5.0±0.3mm
Weight:22±2kg/km
Operating temperature -30℃~+60℃
Store/Transport temperature -30℃~+60℃
