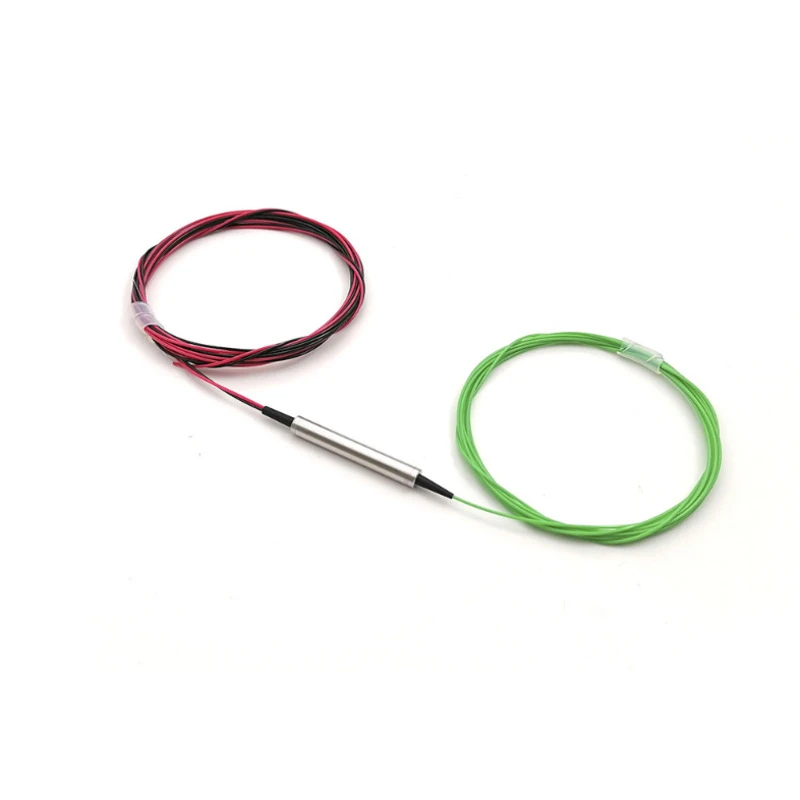

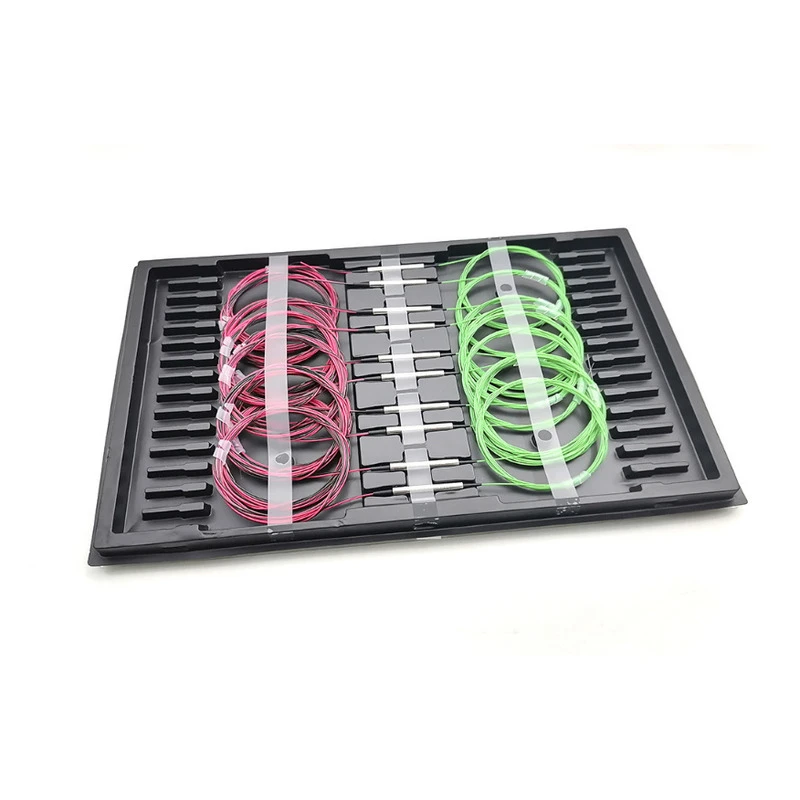

Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Optical path epoxy-free Low insert loss & high isolation
Telcordia GR-1221-Core qualified RoHS compliant
Channel separator Module integration
DWDM/CWDM system
| Parameters | Specifications | Unit | |||
|---|---|---|---|---|---|
| Pass Band | 1530~1565 | nm | |||
| Reflection Band | 1260~1360,1580~1620 | nm | |||
| Insertion Loss | 1310 | ≤1.3 | dB | ||
| 1610 | ≤1.3 | dB | |||
| 1550+98% | 1550+95% | ≤1.9 | ≤2.0 | dB | |
| 0.02 | 0.05 | ≤19.25 | ≤14.8 | dB | |
| Isolation | Pass Channel | ≥30 | dB | ||
| Reflection Channel | ≥15 | dB | |||
| Directivity | ≥50 | dB | |||
| Return Loss | ≥45 | dB | |||
| Polarization Dependent Loss | ≤0.2 | dB | |||
| Polarization Mode Dispersion | ≤0.2 | ps | |||
| Fiber Length | 1.0±0.03 | m | |||
| Fiber Type | SMF-28e with 900um Loose Tube | / | |||
| Connector | LC/UPC | / | |||
| Operating Temperature | -10 ~ +70 | ℃ | |||
| Storage Temperature | -40 ~+ 85 | ℃ | |||
| Package size | Φ5.5*38 | / | |||
