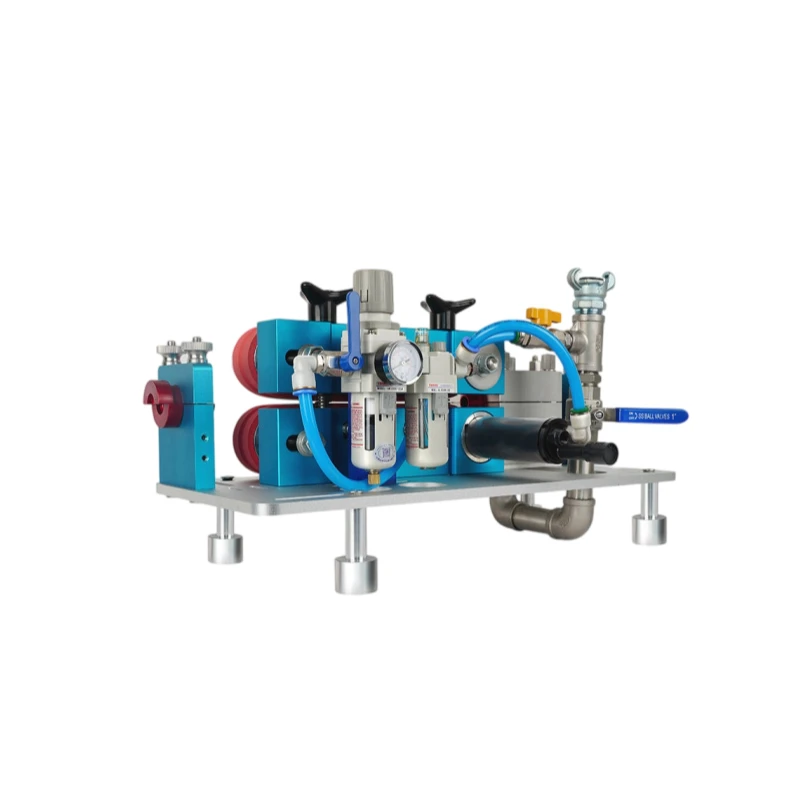

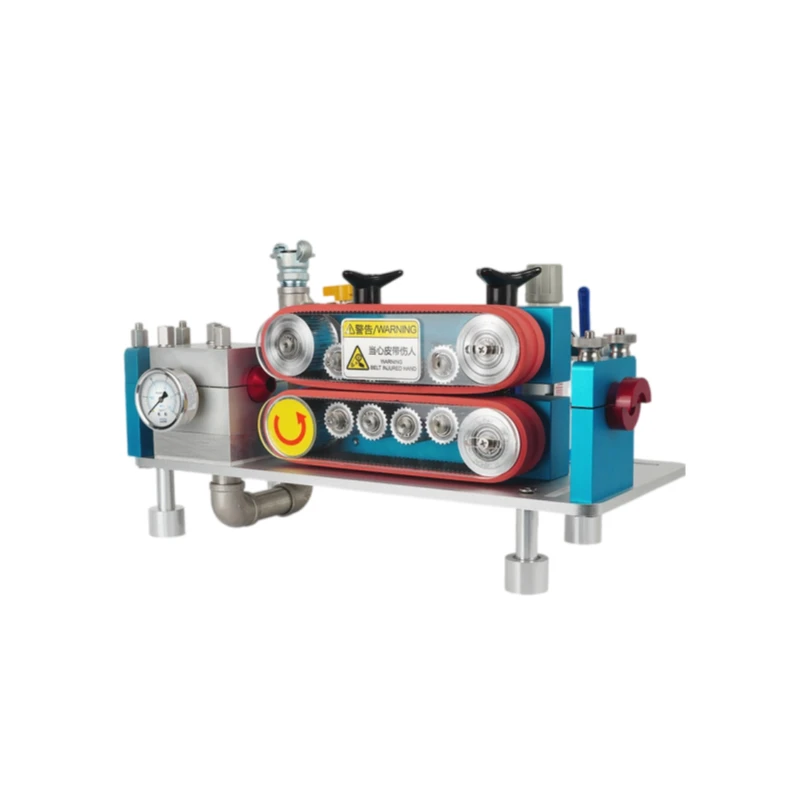

This Multi Functional Pneumatic Fiber Cable Blowing Machine equipped with an high performance compressed air-driven motor, featuring low failure rate, long service life, and high efficiency for long-distance cable laying; maximum pushing speed of 120 m/min; suitable for air-blowing 3×10/8mm micro-ducts (customizable for 5–8mm); designed for ordinary duct cables below 14mm and non-armored non-metallic reinforced micro-cables; compatible with cable diameters of 5–14mm; stepless speed regulation, easy operation and maintenance; compact size with high power output; bidirectional operation.
Suitable for 5-14mm fiber optic cables for efficient FTTX projects.
Flexible Operation: Handles pipe diameters up to 50mm with precision.
Powerful Performance: Delivers thrust of 0-700N for robust cable blowing.
FTTx solution
Telecommunication
Fiber cable deployment
| Items | Specifications |
|---|---|
| Suitable cable diameter | 5~14mm |
| Suitable pipeline diameter | 10~50mm |
| Weight | 28kg |
| Volume dimension(Length * Width * Height) | 600*400*350mm |
| Working pressure | 16bar |
| Laying length | 600~2000m |
| Pushing speed | 60‑80m/min |
| Application scope | GYTA with a diameter less than 14mm‑96 cores or less, non armored non‑metallic reinforced core optical cables (micro cables)GCYFY, JET OUFU gas blown micro cables, and pipeline optical fibers; Synchronize 1‑3 10/8mm high‑density polyethylene microtubes |
