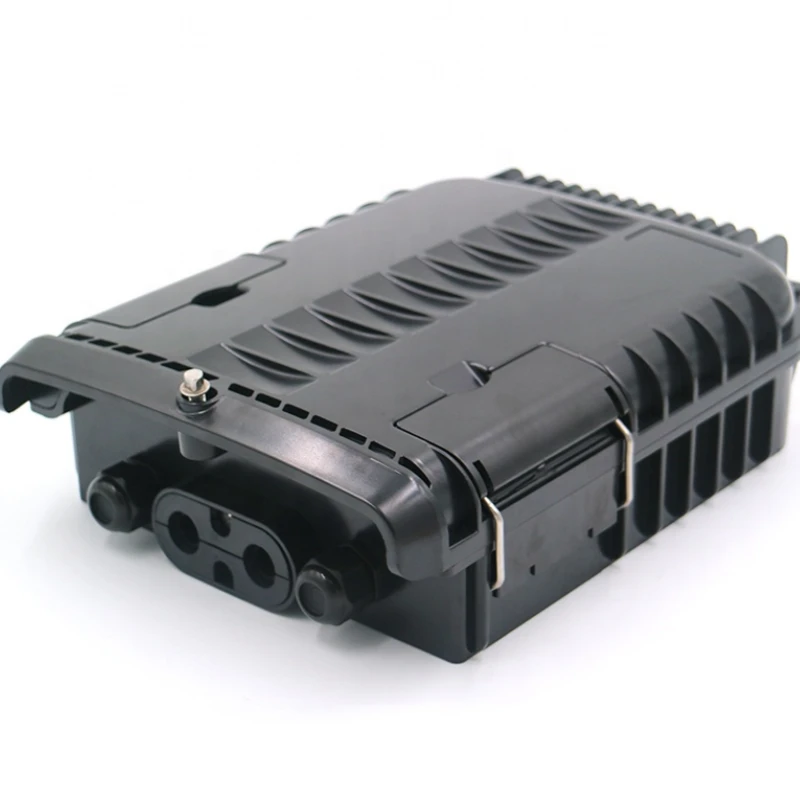

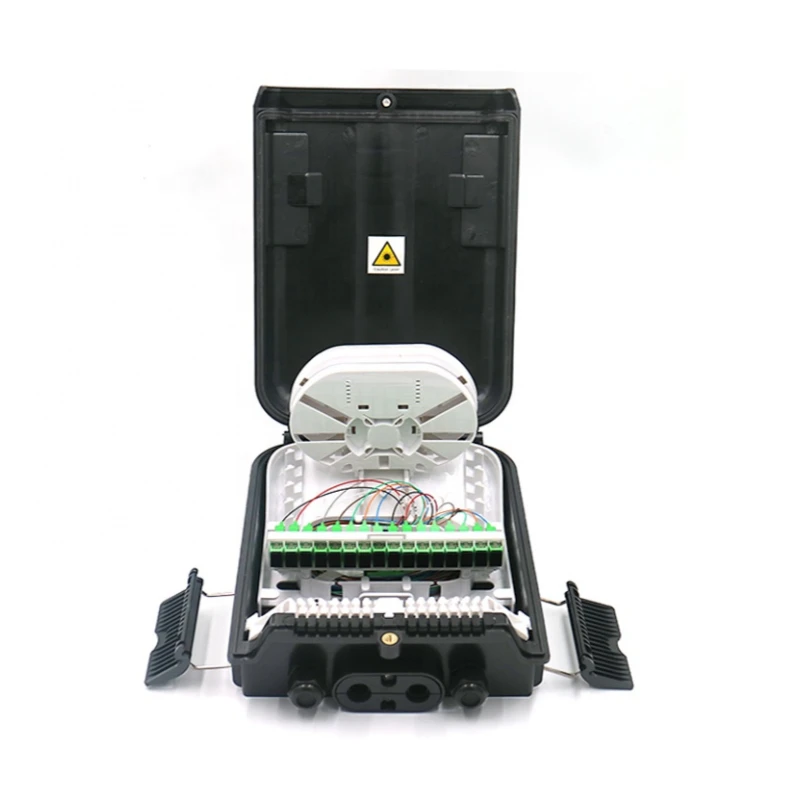

Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
IP65 waterproof grade
Outdoor application and UV resistant
Maximum 16 fiber splice capacity
Support wall/pole/Aerial installation
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks
| Material | ABS+PC |
|---|---|
| Dimensions (mm): W*H*D | 290*210*78 |
| Weight (Kg) | 1.2 |
| Cable inlet/outlet | 2 In 16 Out |
| Waterproof grade | IP66 |
| No of Drops | 16xSC |
| Insert Loss | ≤0.2dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥60dB |
