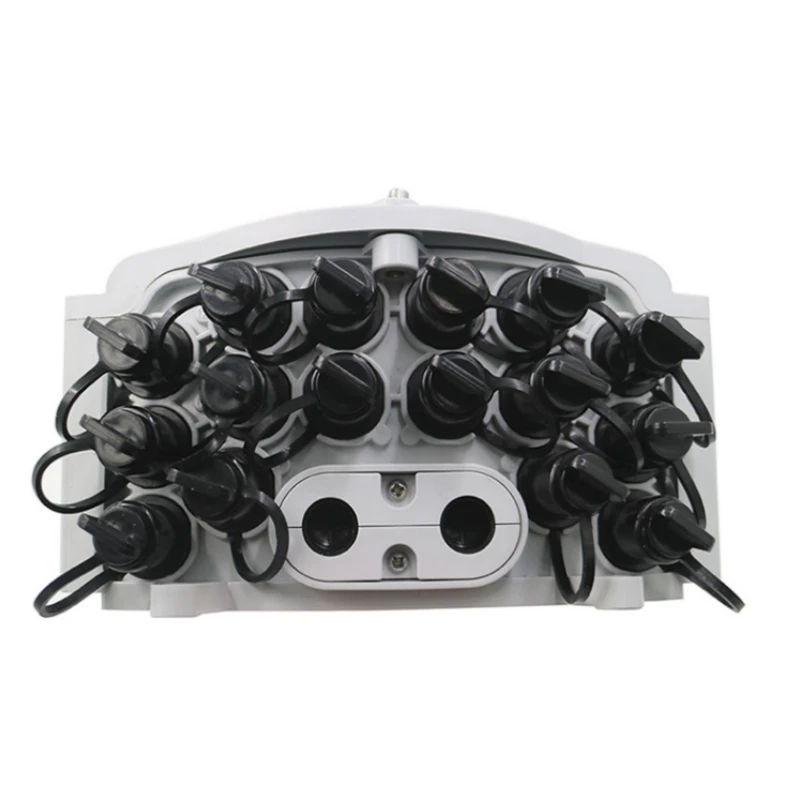

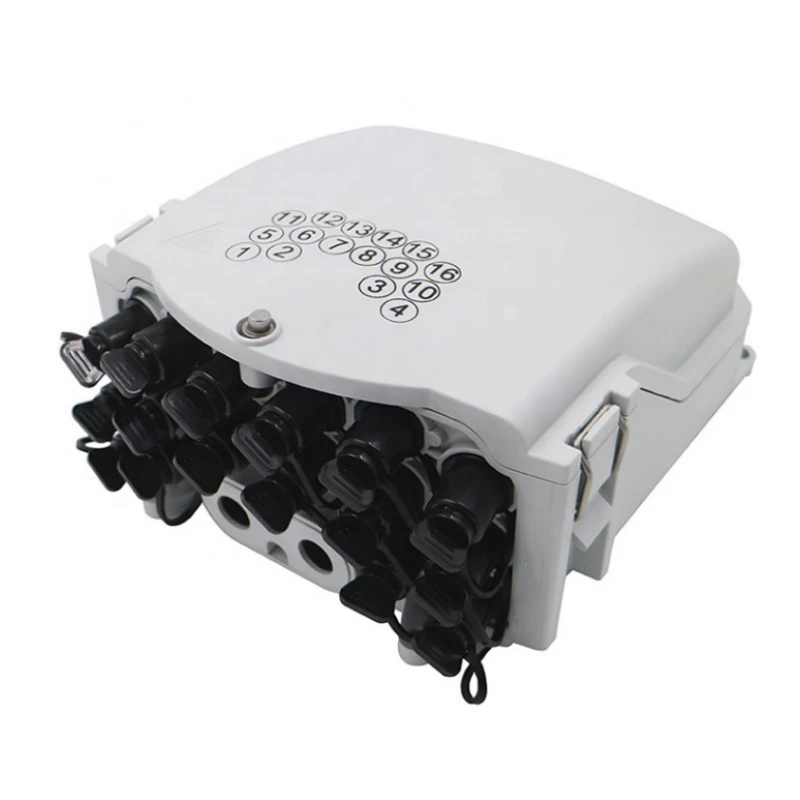

This pre-connectorized FTTH cajas nap 8/16 puertos is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.it always loaded with IP68 waterproof huawei mini SC adapters.
Support 8/16 Ports for Plug and play fast connect
IP68 Waterproof Huawei mini SC Hardened Connector
Wall/Pole/Aerial mounted, underground installation
Made of high quality engineering plastic with good strength
Support OEM brand on the box
FTTX solutions
PON Networks;
CATV Links;
Optical Signal Distribution.
| Material | ABS+PC |
|---|---|
| Dimension (mm): W*H*D | 260*220*125 |
| Waterproof grade | IP65 |
| Cable inlet/outlet | 2 Inlet 16 Outlet |
| Splice trays | 2 piece (8 fibers/tray) |
| Adapter type | 16x Mini SC adatpers |
| Splitters | 2x1:8 Mini tube PLC splitter |
