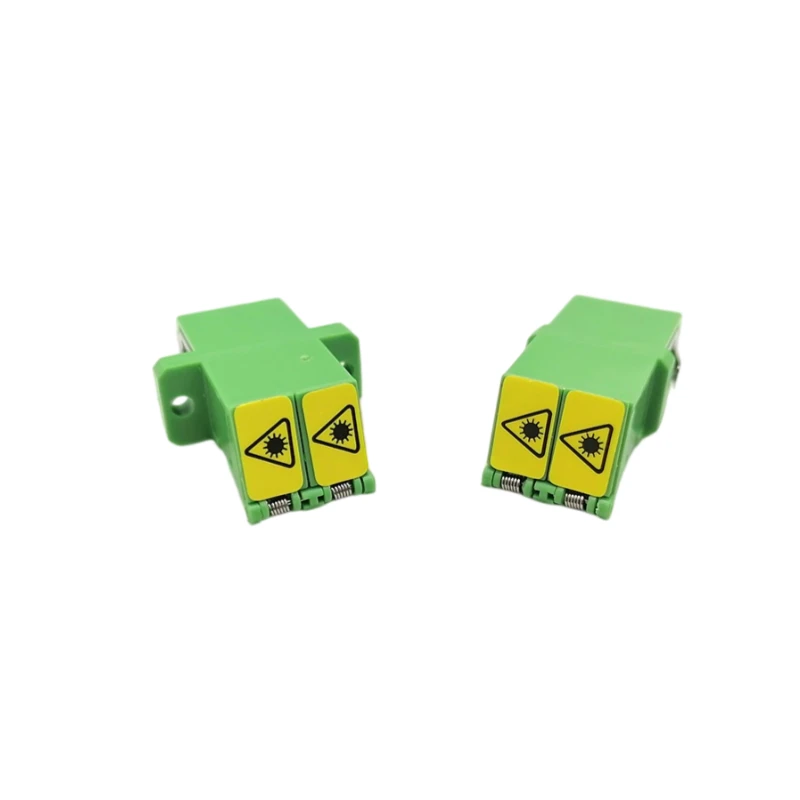

The fiber optic adapters with shutter are mainly available with LC and SC plastic version with or without flange. They are available in two versions, one is integrated build in type , the other is with removable shutter to meet flexible installation requirement, and avoid laser beam hurt. We provide a comprehensive range of fiber optic adapters to meet your fiber service.
Provides eye safety by attenuating laser light when the mated connector is removed;
100% automatic shutter mechanism requiring no operator handling of the shutter door;
Compatible with standard LC connectors;
It keep adapter’s interior clean from dust;
Fiber optic transmission system
Fiber optic sensing
Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
| Parameters | Specifications |
|---|---|
| Connector Type | LC-LC with Shutter |
| Alignment Sleeve Material | Ceramic |
| Mode Type | Singlemode or Multimode |
| Insertion Loss | ≤ 0.2dB |
| Sleeve Pull Force | 1‑2.5N |
| Durability | ≤ 0.2dB (500 Times) |
| Operating Temp. | -40℃～+80℃ |
| RoHS Compliancy Status | Compliant |
