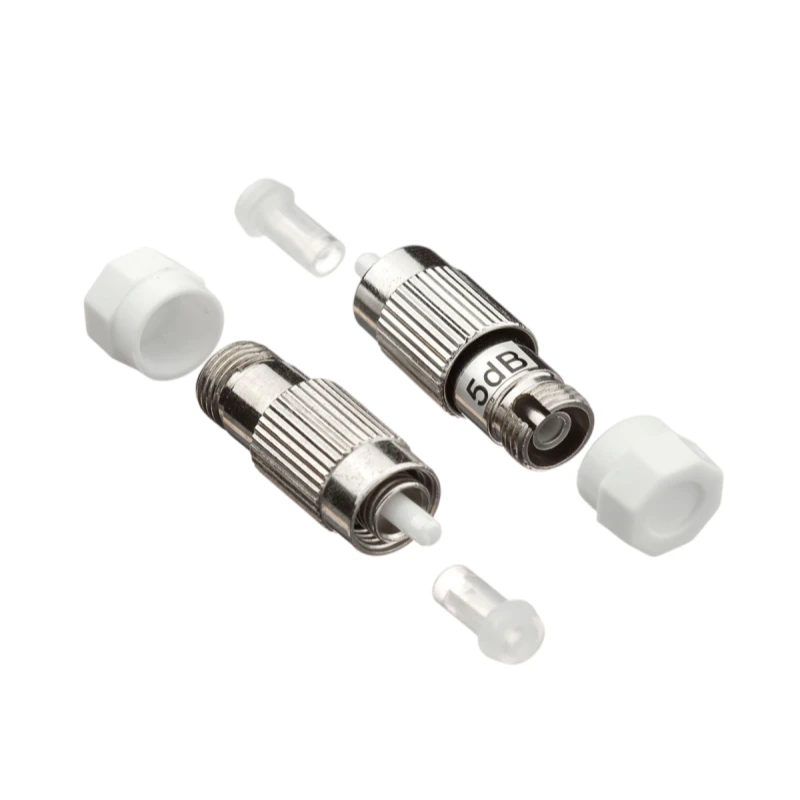

FC Male Female Fiber Optic Attenuator are commonly used in fiber optic communications to the the power level of a fiber cable by controlling the amount of signal loss that is passed through the signal. Commonly used attenuation range is from 1dB to 20dB.The most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level. FC Build Out Fiber Attenuators include FC/UPC fiber attenuators and FC/APC Female to Male Fiber Attenuators.
Passive optical networks;
CATV Fiber Optic Sensor;
Local Area Networks(LANs);
DWDM applications
Test & measurement
Optical sensors
Telecommunications applications
Attenuation levels ranging from 1dB to 25dB
Wavelength independence
Precise attenuation values
Low PDL and insertion loss
Precision polishing for reduced back reflection
| Parameters | Specifications |
|---|---|
| Attenuation Range | 0‑25dB |
| Attenuation Accuracy | ±0.5dB(1dB‑10dB) ±1.0dB(11dB‑25dB) |
| Available Wavelengths | 1310nm,1550nm,1310&1550nm |
| Wavelength Dependence | <0.3dB Change in insertion loss for 1310‑1550nm |
| Return Loss | ≥55dB(UPC) ≥65dB(APC) |
| Polarization Dependent Loss | ≤0.2dB |
| Temperature Range | ‑40‑80°C(≤0.2dB in insertion loss) |
| Humidity Range | ±0.2dB Change in 10% to 90% relative Humidity Range |
| Vibration | ≤0.1dB Change between 10Hz to 55Hz |
| Drop | ±0.2dB after 8 drops from 1.8meters onto a hard surface |
| Maximum Optical Input Power | 200mW |
