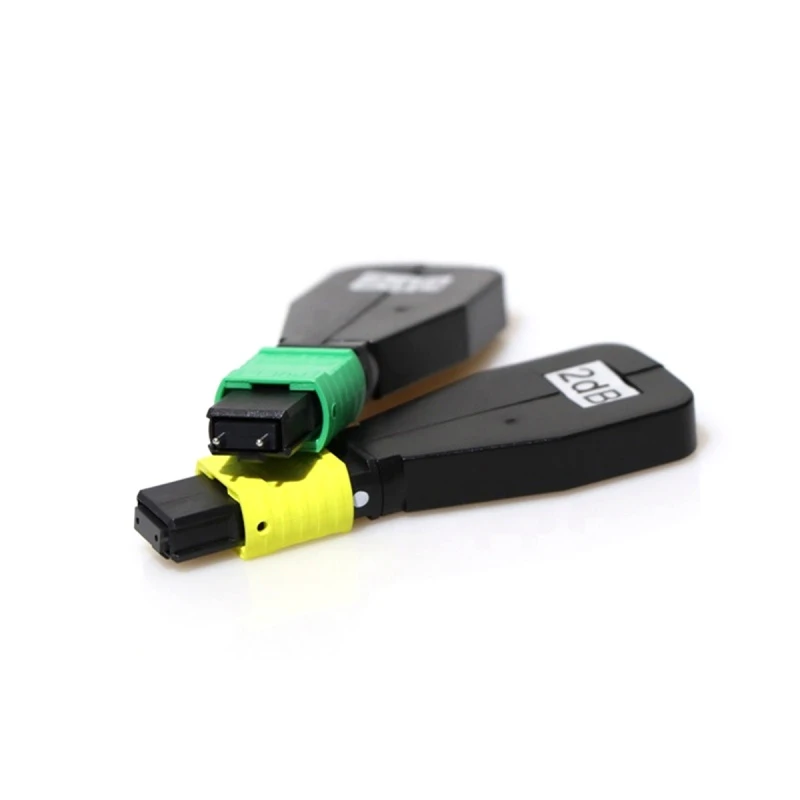

MPO/MTP Optical attenuator is used to reduce optocal-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO/MTP interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of Attenuator independently in each channel, as downsizing the volume and saving time.
High stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/male type of MTP connector)
RoHS Compliant
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
| Parameters | Specifications |
|---|---|
| Operating Wavelength | 1310/1550nm |
| Attenuation Range | 1~30dB |
| Return Loss | APC: ≥60dB PC:≥50dB |
| Attenuation Tolerance | ±1dB(≤10dB) ±10%(10~30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Humidity | 95%RH |
| Product dimension | 59.8*20*6.5mm |
