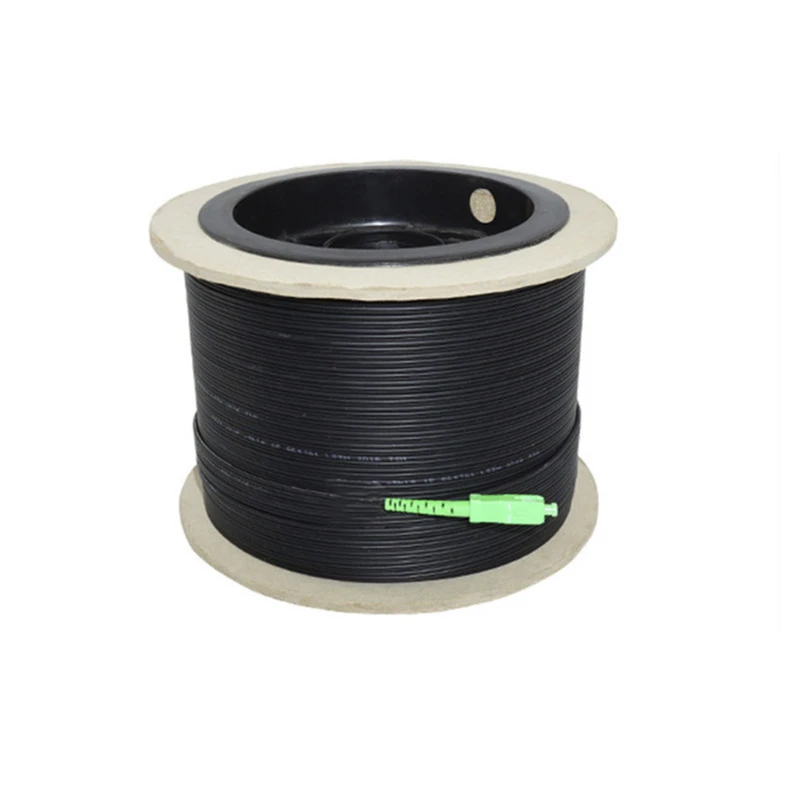

FTTH drop cable with easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes.It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system.
Good mechanical and enviromental characteristic Low insertion loss and high return loss.
Soft ,flexiable ,easy to lay and splice, and with big capacity data transmission Anti-UV charateristics meet the requirements of relevant standards
The mechanical charateristics meet the requirements of relevant standards
Access Network Telecom/CATV Systems
FTTx
| Fiber Type | SM G657A1 |
|---|---|
| Fiber Count | 1 Fiber |
| Jacket Materials | LSZH |
| Connector Type | SC APC or SC UPC |
| Cable Size | 2.0×5.0mm |
| Strength Member Material | FRP |
| Insertion Losss(dB) | ≤ 0.3dB |
| Tensile Strength (long/short term) | 300/600N |
| Bending Radius (long/short term) | 10D/20D (mm) |
| Operating Temperature (° C) | -10~ + 70 |
| Storage Temperature (° C) | -40 ~ +85 |
| Length | 10m/20m/30/50/70m/100m/150m or Customized |
