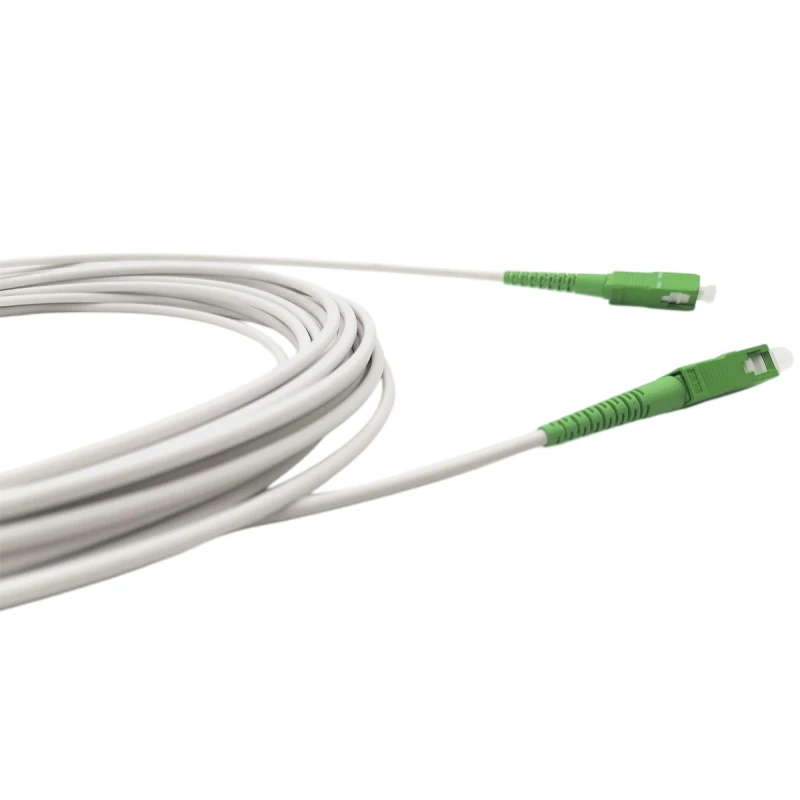

Fiber optic patch cables provide interconnect and cross-connect of applications over data centers, telecommunication networks, and enterprise environments. OPTEKCOM provide fully series fiber patch cords by simplex or duplex, with cable diameter range from 1.2/1/6/1.8/2.0/3.0mm, support with Single Mode G652D/G657A1/G657A2 or Multimode OM1/OM2/OM3/OM4/OM5 fiber for options.
Low insertion loss
High return loss
Good repeatability and exchangeability
CATV
FTTX
LAN and WAN
Broadband network
Telecommunication networks
| Parameters | Standard Fiber Cable Assemblies SM(G.652D/G.657A1 or G657A2) |
Standard Fiber Cable Assemblies MM(OM1/OM2/OM3/OM4/OM5) |
|---|---|---|
| Fiber Type | SM(G.652D/G.657A1 or G657A2) | MM(OM1/OM2/OM3/OM4/OM5) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/E2000 UPC or APC Polished | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310/1550nm | 850/1300nm |
| Insertion Loss(dB) | ≤ 0.3dB | ≤ 0.3dB |
| Polished Type | (PC/UPC/APC) | (PC/UPC) |
| Return Loss(dB) | ≥50dB(PC/UPC) ≥60dB(APC) | ≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Diameter | 1.2/1.6/1.8/2.0/3.0mm Simplex or Duplex | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
