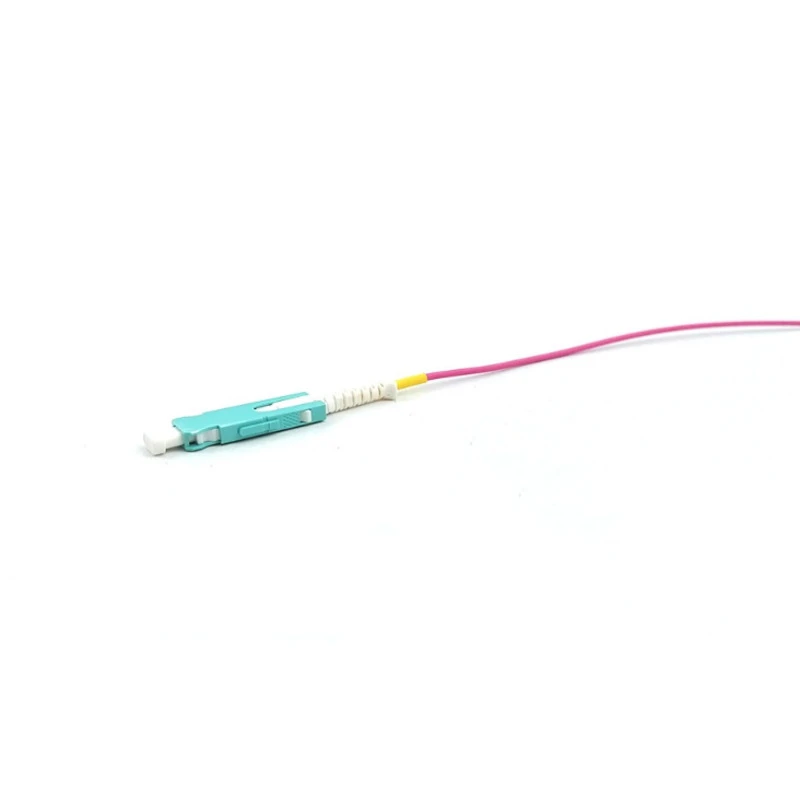

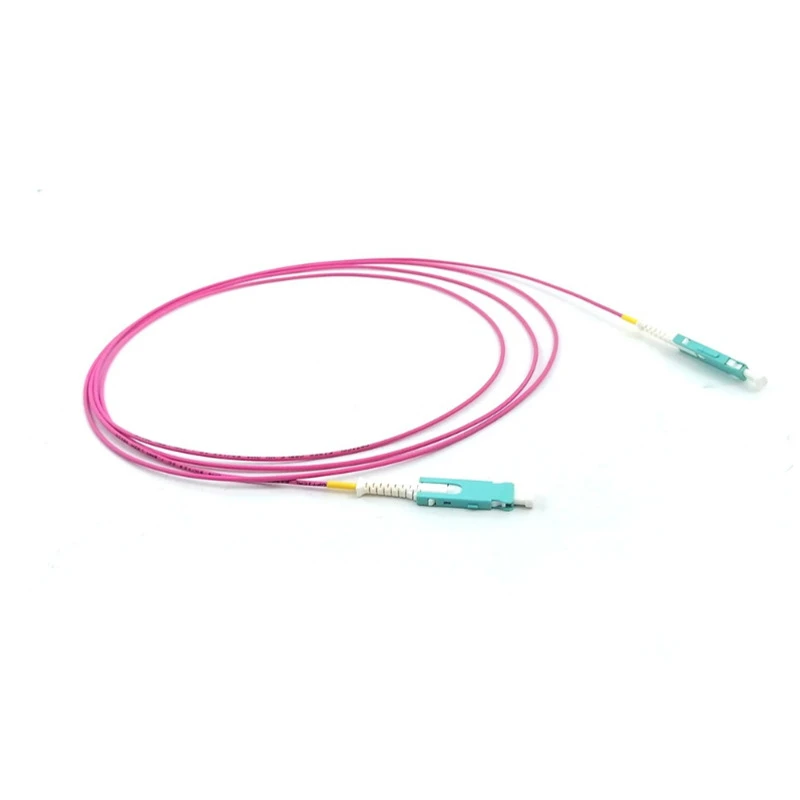

The SN® Fiber Optic Patch Cords is the ultimate designed and optimized for next-generation data rates, the SN® patch cord offers network operators the chance to densify their existing legacy infrastructure whilst at the same time providing an upgrade path to 400G and beyond. It is suitable for termination to either 1.6 mm or 2.0 mm round cable that incorporates a ruggedized jacket and internal strain relief. The SN® connector has an integrated ‘push-pull’ boot that simplifies insertion and removal of the connector even in dense patch panels where finger access is limited. A gang-clip can be added to four individual SN® connectors allowing them to be patched simultaneously to either adapters or 4-channel (8 fibers) transceivers (subject to product selection).
Very Small Form Factor (VSFF) connector Unique push-pull boot for simple installation and removal
All Assemblies are machine polished providing highest quality
High-density patching QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates
Telecommunication networks Data centers
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) |
|---|---|---|
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | CS/UPC | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) | ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
| Return Loss(dB) | ≥45dB(PC/UPC) ≥55dB(APC) | ≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
