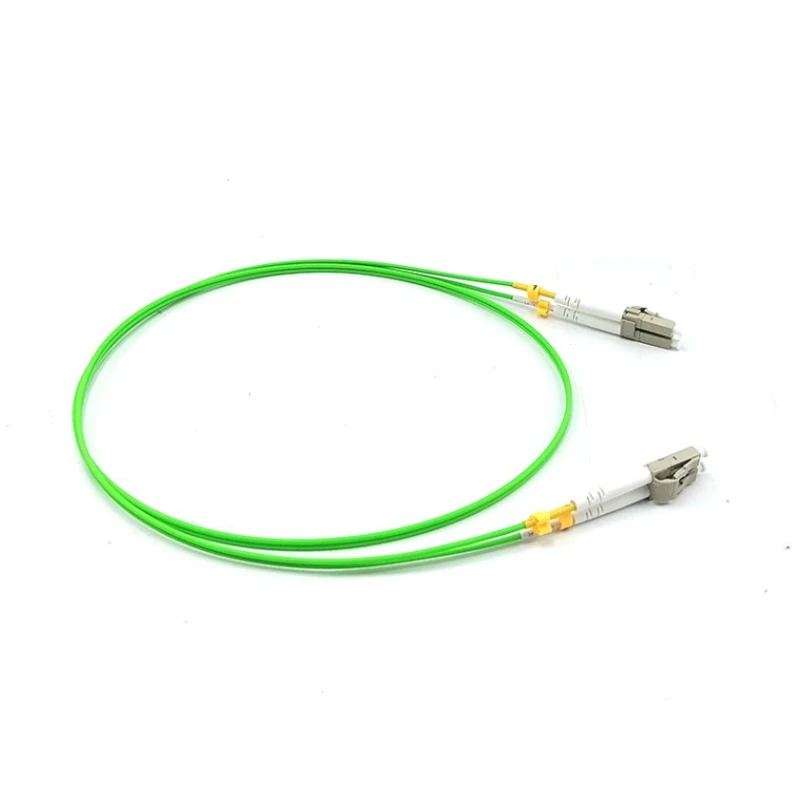

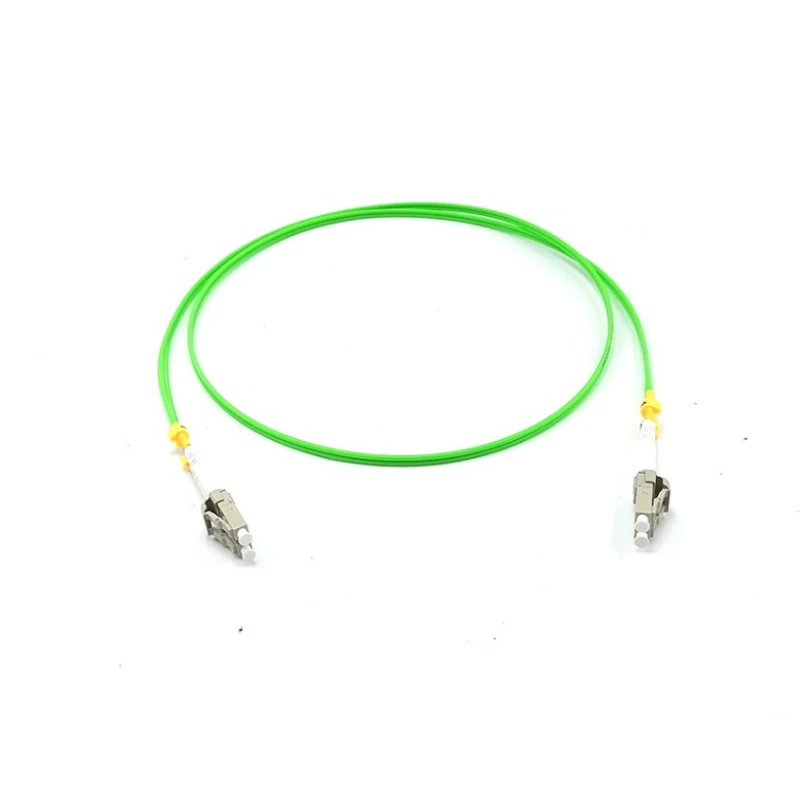

OM5 wideband multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.
Low insertion loss, high return loss Excellent in repeatability and exchangeability
Excellent mechanical endurance High credibility and stability
Data Centre Telecommunication networks
Broadband network
| Model | Single Mode (G652D,G657A1,G657A2,G657B3) | Multi Mode (OM1,OM2,OM3,OM4,OM5) | |
|---|---|---|---|
| Polish | UPC | APC | UPC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -45℃~+70℃ | ||
| Cable Diameter | 0.9mm, 2.0mm, 3.0mm | ||
| Cable Length | 1m,2m,3m; Customized | ||
| Cable Jacket | PVC,LSZH,OFNR,OFNP | ||
