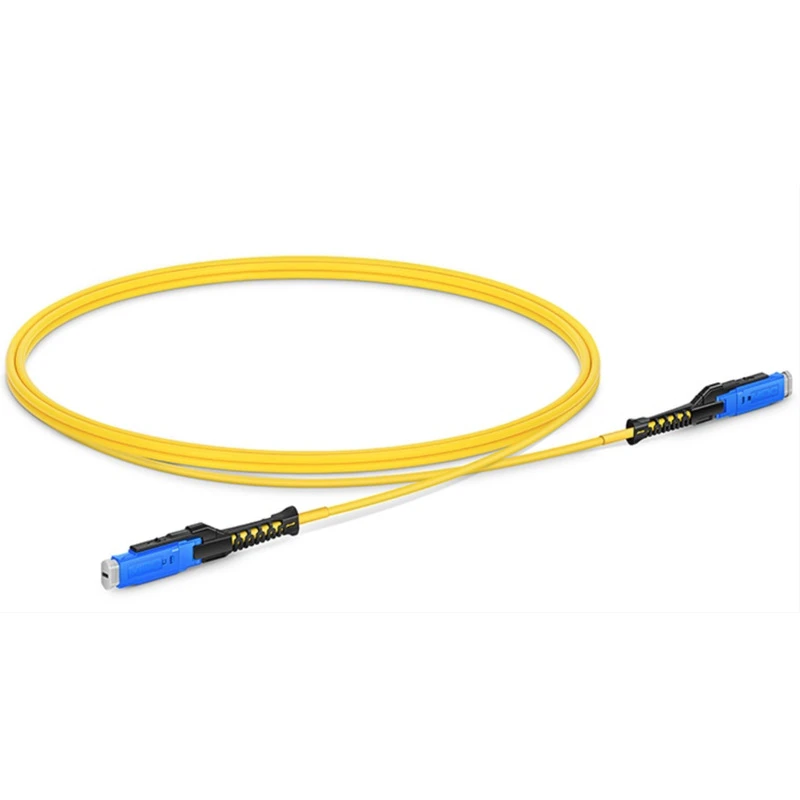

The MDC duplex patch cord is designed for cross-connection between patch panels or distribution boxes and optical fiber equipment. Featuring a compact form factor, push-pull boot, and easy polarity change, MDC connectors enable efficient and flexible deployment. These patch cords are also compatible with SFP-DD transceivers for direct connections.it available in single-mode (OS2) and multimode (OM3, OM4, OM5) options, including bend-insensitive G.657.A fiber, hybrid versions with standard single-fiber connectors are also offered.

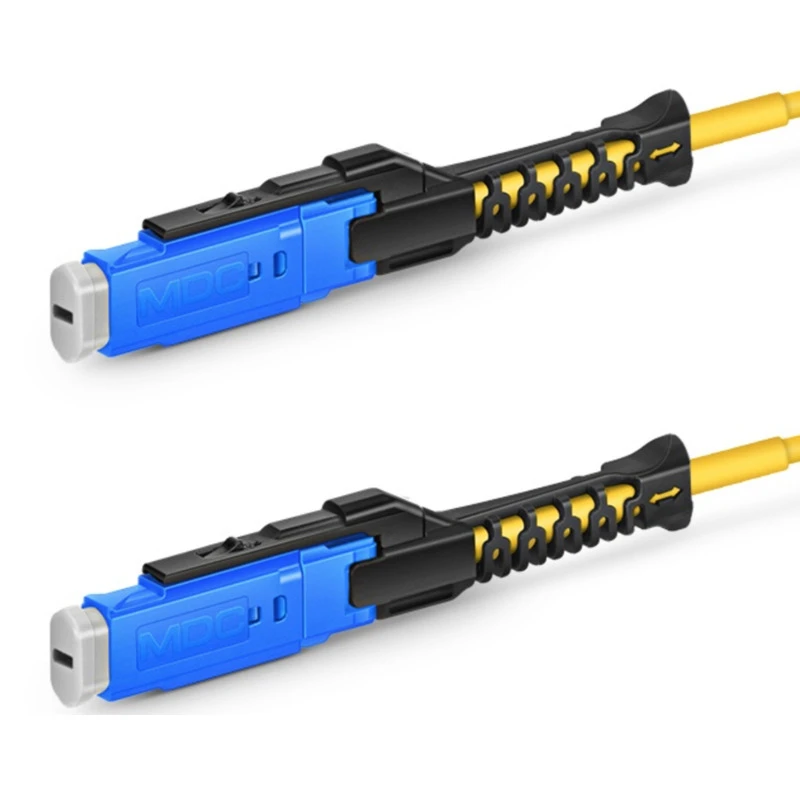

Two 1.25mm ferrules in one assemblies housing; Push-pull boot for assemblies insertion and extraction;
Simple polarity reversal with no exposed fibers; Designed for cables up to 2.0mm OD;
MM, SM and SM APC available; 3x fiber cabling density over LC.
High-density patching QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates
Telecommunication networks Data centers
| Fiber Type | SM G657A1 |
|---|---|
| Fiber Count | Duplex |
| Jacket Materials | LSZH |
| Connector Type | MDC/APC |
| Cable Size | 2.0mm |
| Insertion Loss | IL≤0.3dB |
