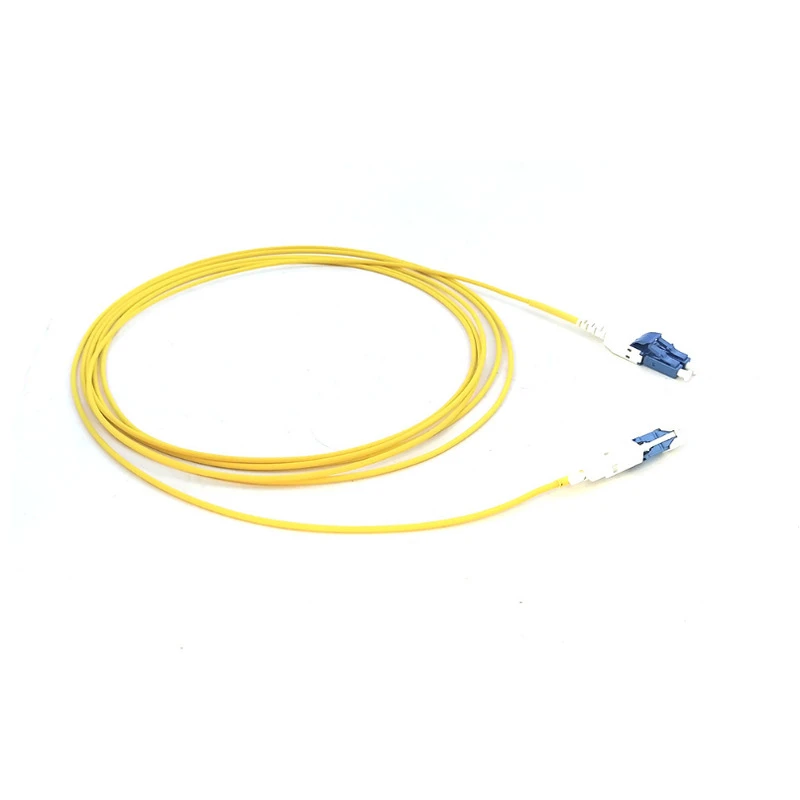

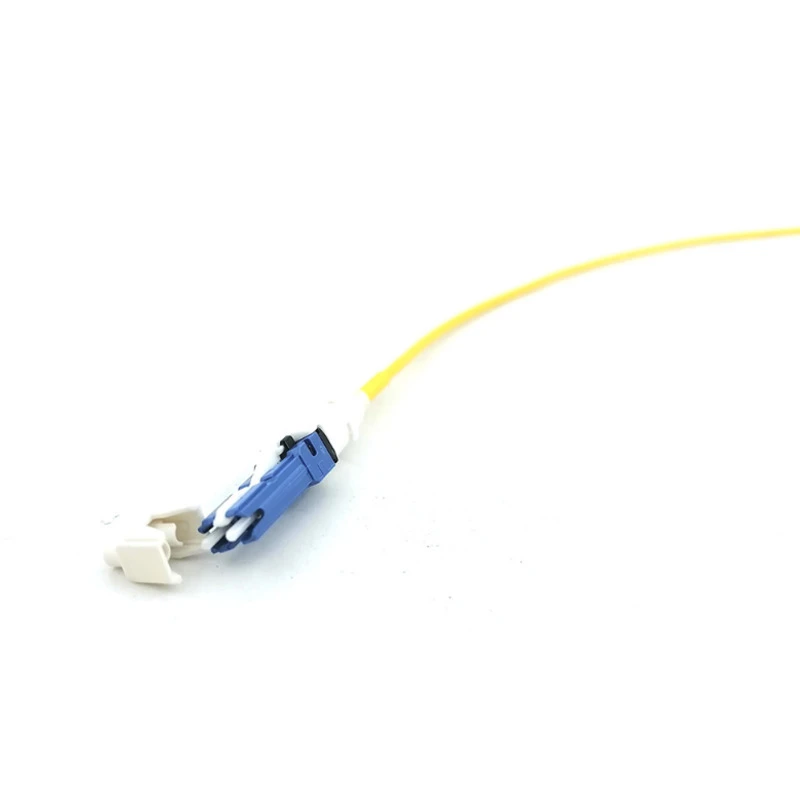

The CS end is 40 percent smaller than a standard LC connector, making it compatible with the latest 400G QSFP-DD transceivers and an excellent solution for high-density network applications. A push/pull tab allows dense vertical stacking in switches or patch panels where space is at a premium and makes the cable easy to install or remove with one hand.
40% size reduction compared to LC Duplex Connector adopted by QSFP-DD, OSFP and COBO
Performance exceeds LC Push/Pull tab for a better usability in high density applications
for a better usability in high density applications Double the density in patch panel compared to LC
Data Centre Telecommunication networks
LAN and WAN Broadband network
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) |
|---|---|---|
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | CS/UPC | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) | ≤ 0.3dB (PC/UPC/APC) | ≤ 0.3dB(PC/UPC) |
| Return Loss(dB) | ≥45dB(PC/UPC) ≥55dB(APC) | ≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
