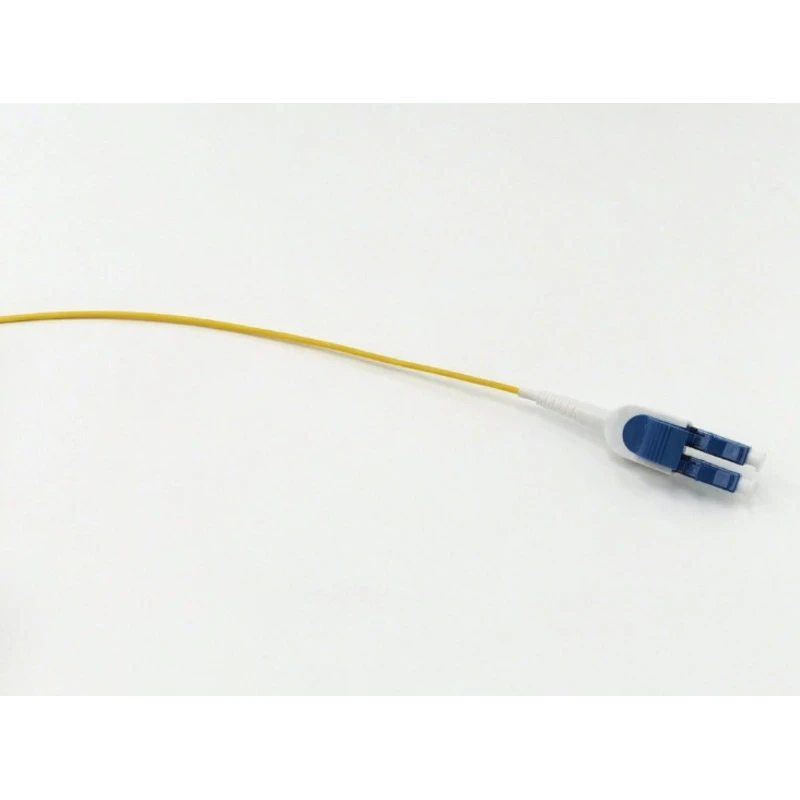

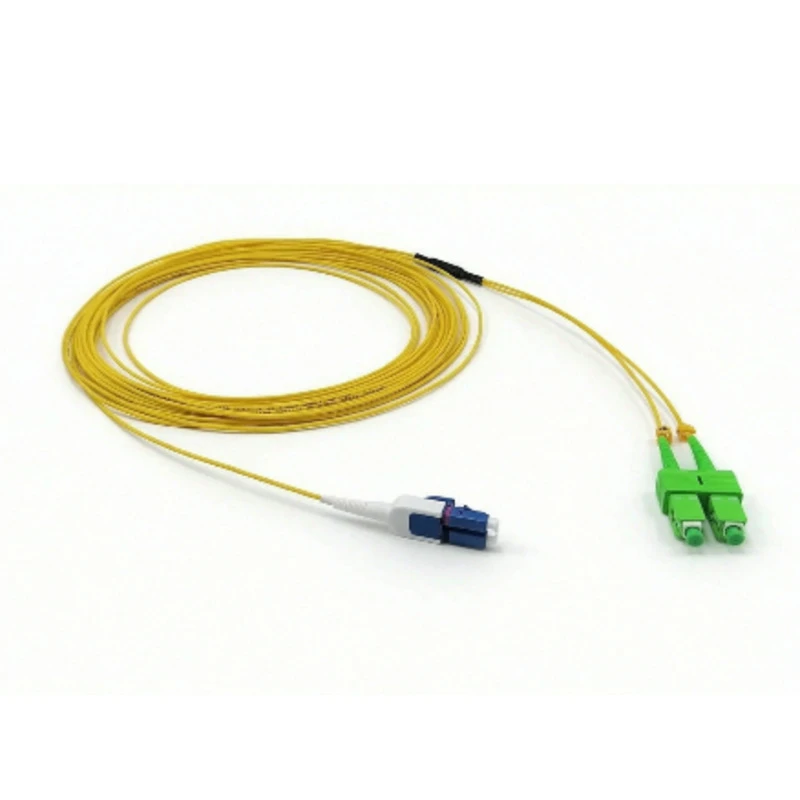

The Switchable Pull&Push uniboot connector is a unique design that allows to switch polarity without using any tooling.At the same time, the Pull&Push boot design enables construction and maintenance personnel to easily insert and remove the entire connector freely in the high – density ODF just by pinching the tail sleeve, which greatly improves work efficiency. So It is commonly used in data centers where cable counts are high and space limited.
Low insertion loss High return loss
Compact design Flexibility and high reliability
Fiber optic communication system Equipment to equipment patching
High Density Data Center Telecommunication
| Item | SM(Single Mode) | MM(Multimode) | |||
|---|---|---|---|---|---|
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
