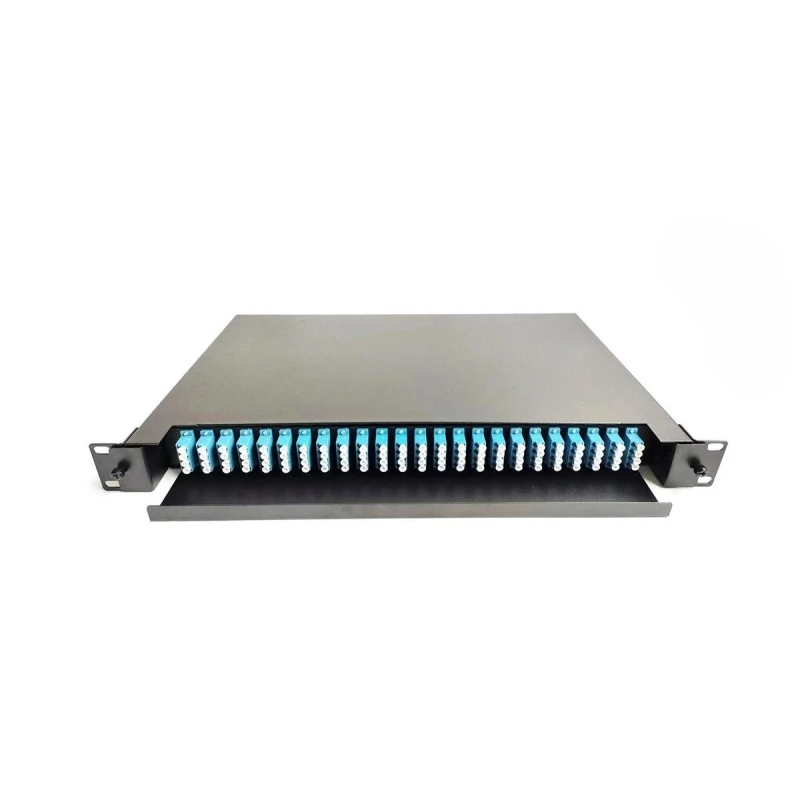

High Density (HD) Series patch panels offer an extra slot that accepts up 24x LC quad adapter in the 1RU footprint. This design has been accomplished by staggering the mounting ears. The HD patch panels are ideal for high fiber count applications and will fit into any standard 19” or 23” rack by rotating the panel’s mounting ears.
1U High Height UP to 96 Fiber
Reversible 19" or 23" Rack Mount
Splice & Terminate up to 96 Fibers
Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
Flat Front Panel for Optimal Cable Routing
Removable Top for Easier Fiber Cable Management
Data centers,pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High denisty architectures
| Capacity | 1U 96 port |
|---|---|
| Size | 485*339*44.5mm |
| material | High steel or aluminum |
| odf cover | with glass cover to prevent laser damage |
| installation | sliding with drawer, Easy to maintain and extend |
| Adapters | 24x LC Quad Adapter |
