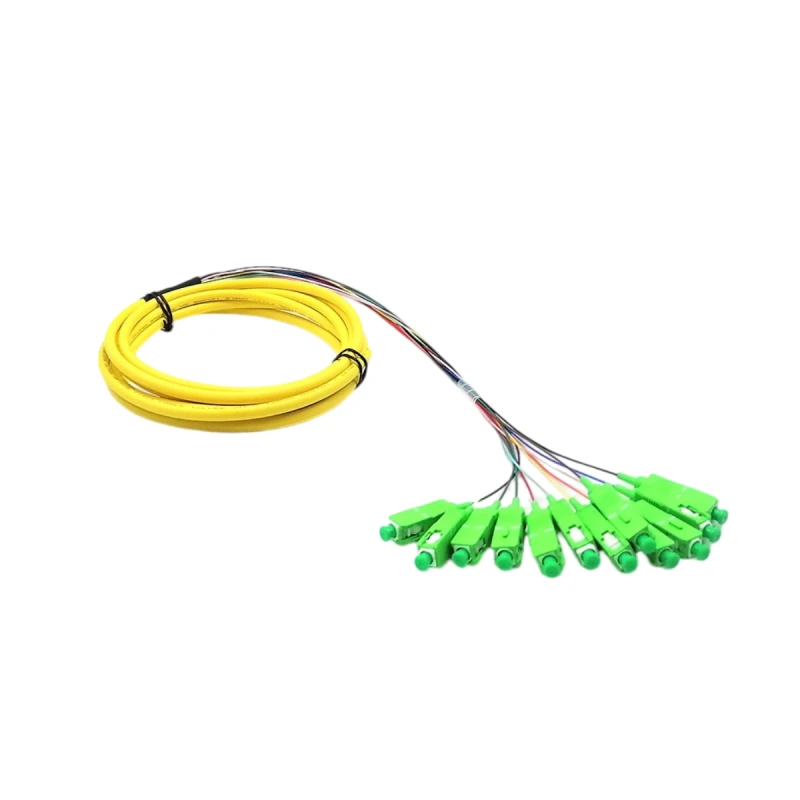

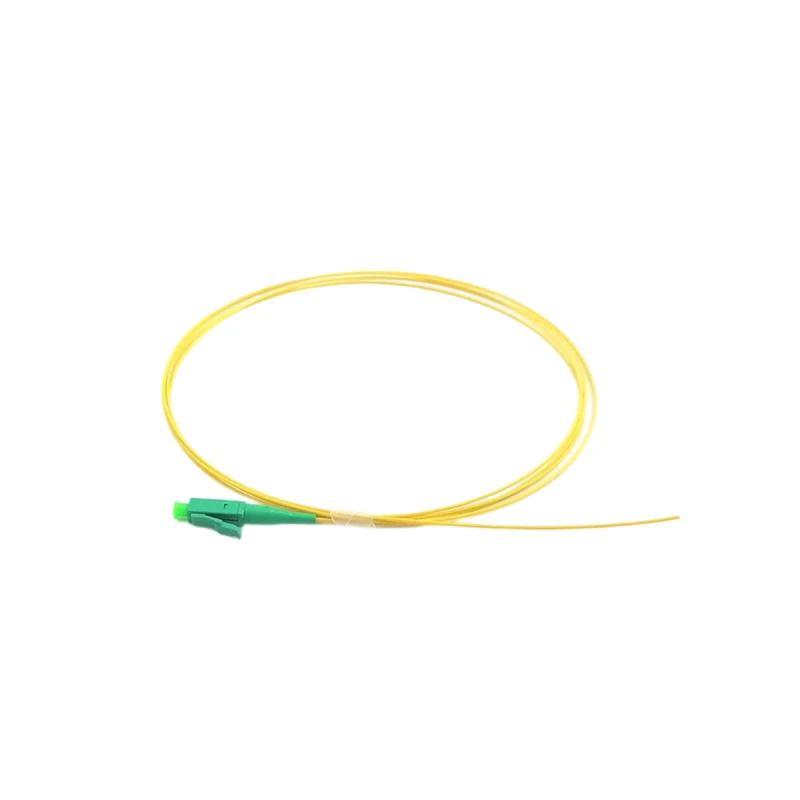

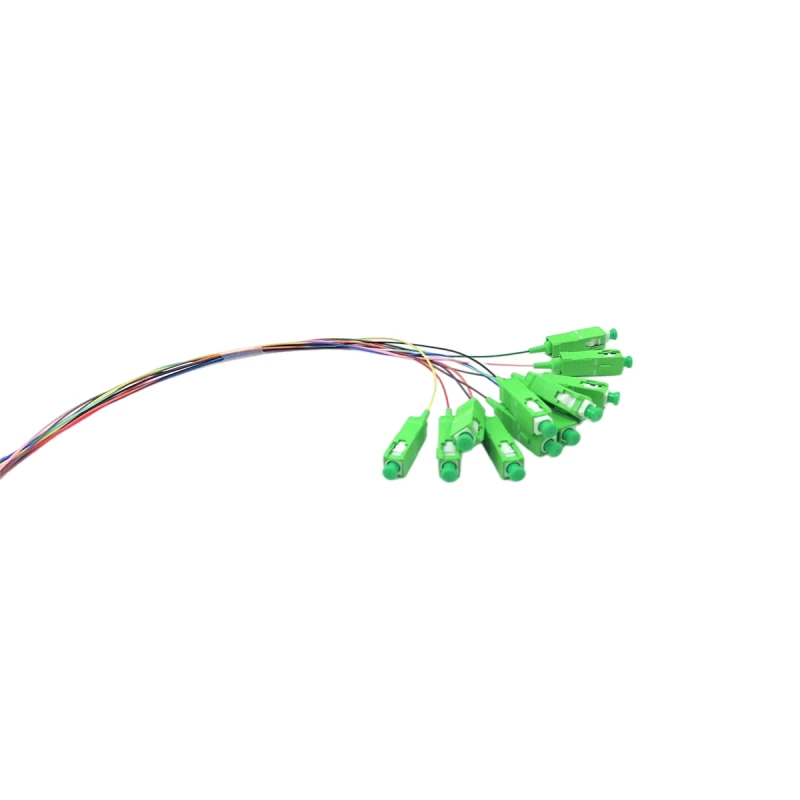

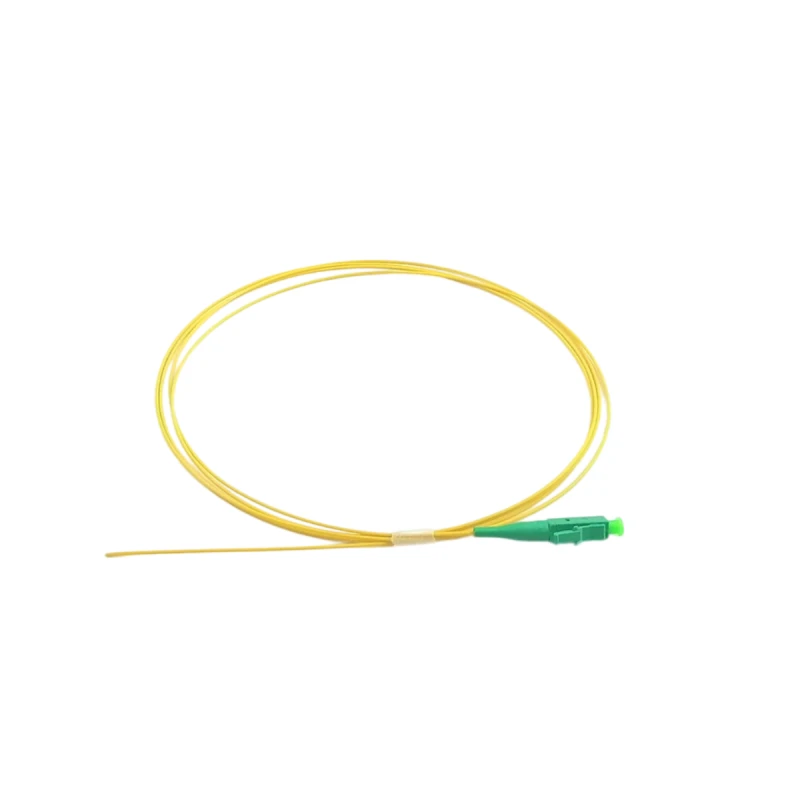

Fiber Optic Pigtails with different connectors of SC, LC,FC, ST by UPC or APC polished. These can be come with singlemode or multimode OM3,OM4 fiber. it usually come with 900um tight buffer or 4/6/8/12 Strands Color Coded or Ribbon Fanout Pigtail. They are widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN networks.
4/6/8/12 Strand avaliable
Low insertion loss, high return loss
Good in repeatability and exchangeability
SC, LC,FC, ST connectors with UPC or APC polished
CATV
FTTX
LAN and WAN
Broadband network
Telecommunication networks
| Parameter | Singlemode Fiber PC |
Singlemode Fiber UPC |
Singlemode Fiber APC |
Multimode Fiber PC |
|---|---|---|---|---|
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Fiber Type | G657A1/G657A2/OM3/OM4 | G657A1/G657A2/OM3/OM4 | G657A1/G657A2/OM3/OM4 | G657A1/G657A2/OM3/OM4 |
| Connector Type | SC LC FC SC UPC or APC Polished | SC LC FC SC UPC or APC Polished | SC LC FC SC UPC or APC Polished | SC LC FC SC UPC or APC Polished |
| Length | 1m or Customized | 1m or Customized | 1m or Customized | 1m or Customized |
| Pigtail Type | 0.9mm Simplex/Color Coded Pigtail/Ribbon Fiber Pigtail | 0.9mm Simplex/Color Coded Pigtail/Ribbon Fiber Pigtail | 0.9mm Simplex/Color Coded Pigtail/Ribbon Fiber Pigtail | 0.9mm Simplex/Color Coded Pigtail/Ribbon Fiber Pigtail |
| Exchangeability(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Plug‑pull life(times) | >1000 | >1000 | >1000 | >1000 |
| Operating temperature(℃) | -40~+75 | -40~+75 | -40~+75 | -40~+75 |
| Storage temperature(℃) | -45~+80 | -45~+80 | -45~+80 | -45~+80 |
