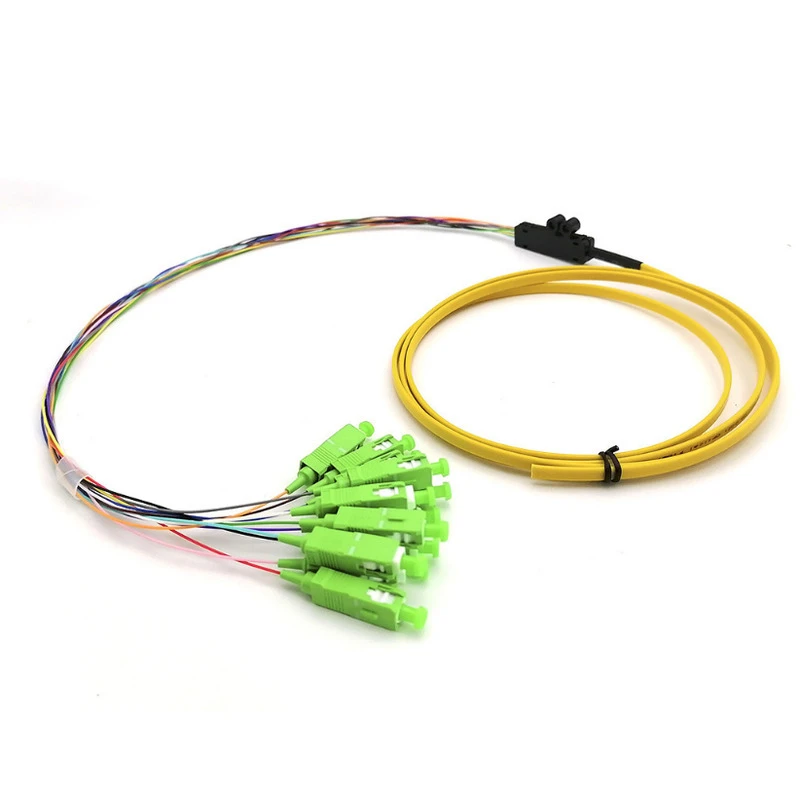

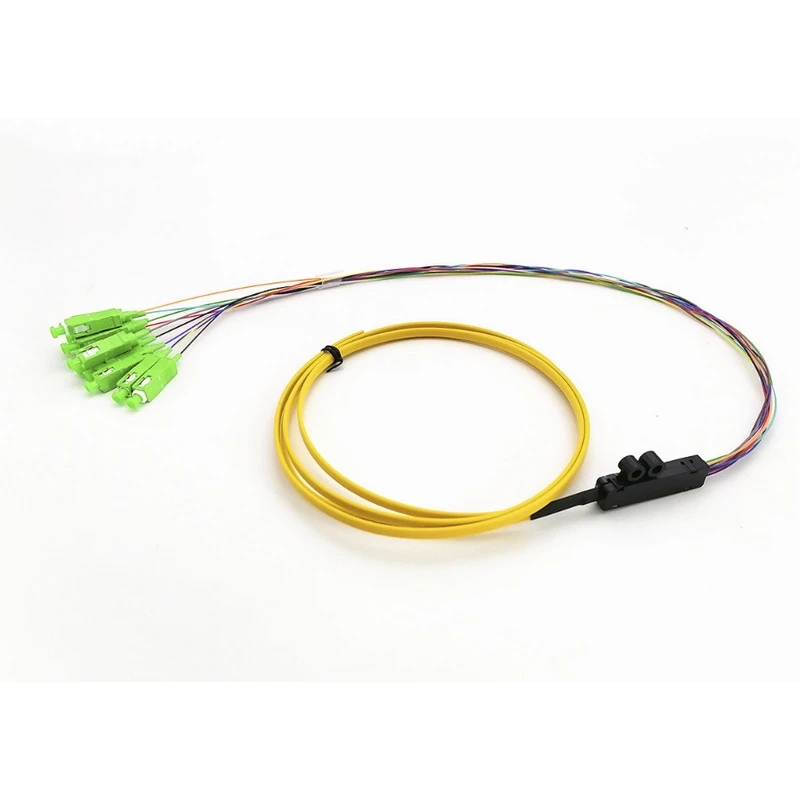

12 fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems,it usually build based on SM OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.
G.657.A2 Bend Insensitive Fiber Color-coded for Easy Matching of 0.9mm Fiber to Be Spliced
Easy-strip 900µm Tight-buffered Coating Precision Zirconia Ferrule Connectors Ensure Low Loss
Support Both Fusion and Mechanical Splicing
Telecommunication networks CATV
LAN and WAN FTTX
Broadband network
| Parameter | Singlemode Fiber | Multimode Fiber | ||
|---|---|---|---|---|
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥50 | ≥50 | ≥60 | ≥30 |
| Fiber Type | G657A2 | |||
| Connector Type | SC LC FC ST by UPC or APC Polished | |||
| Cable Length | 2M+0.5M Fanout | |||
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
