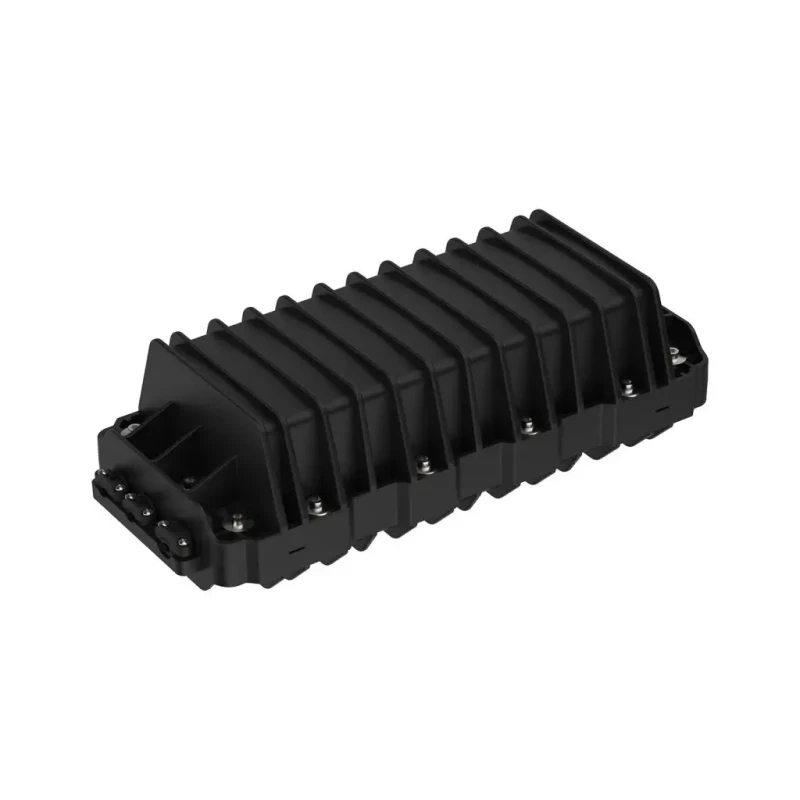

The GPJ09-6814-C Fiber Optic Splice Closures is used for cable termination. It connects to optical switches via fiber patch cords and prevents material aging caused by heat, cold, light, oxygen and microorganisms in natural environments. The main body is made of modified PP material, featuring excellent weather resistance, chemical corrosion resistance, UV resistance, waterproof performance and physical impact resistance. It is suitable for straight-through and branch connections of various types of optical cables deployed via aerial, wall-mounted, underground and other installation methods.
3 inlets (Φ10-18 mm), 3 outlets (Φ10-18 mm)
Mechanical Seal up to 288 (bundle); 1152 (ribbon)
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-6814-C | ||
|---|---|---|---|
| Style | Inline/Horizontal | ||
| Dimensions (L×W×H) | 540×217×155 mm | ||
| Material | Polymer Modified Plastics | ||
| Sealing Type | Mechanical Seal | ||
| Protection Grade | IP68 | ||
| Cable Ports | Inlet | 3 | Φ10 - Φ18 mm |
| Outlet | 3 | ||
| Fiber Splice Capacity | Bundle | 288F | |
| Ribbon 6‑Core Tray | 576F | ||
| Ribbon 12‑Core Tray | 1152F | ||
| Tray Capacity | Bundle | 48F | |
| Ribbon 6‑Core Tray | 96F (16 pcs ribbon fibers) | ||
| Ribbon 12‑Core Tray | 192F (16 pcs ribbon fibers) | ||
| Tray Count | 6 | ||
| Weight | 4.0 - 4.5 kg | ||
| Application | Wall Mounting/ Aerial/ Duct Mounting/ Underground | ||
| Packing Type | Inner Carton | 570×235×180 mm (1 PCS) | |
| Outer Carton | 580×460×530 mm (6 PCS) | ||
