GPJ09-5817 series dome closures feature the high-capacity design. The fusion splice capacity range is 144F~648F, with 24F/ 12F/ 6F tray capacity. The splice trays for the joint closures are interchangeable with splitter trays. Both fusion splice and splitter installation are feasible. Employing the heat shrink seal, the protection grade of this series can reach IP68. The heat-shrink sealing base is interchangeable with the mechanical sealing base

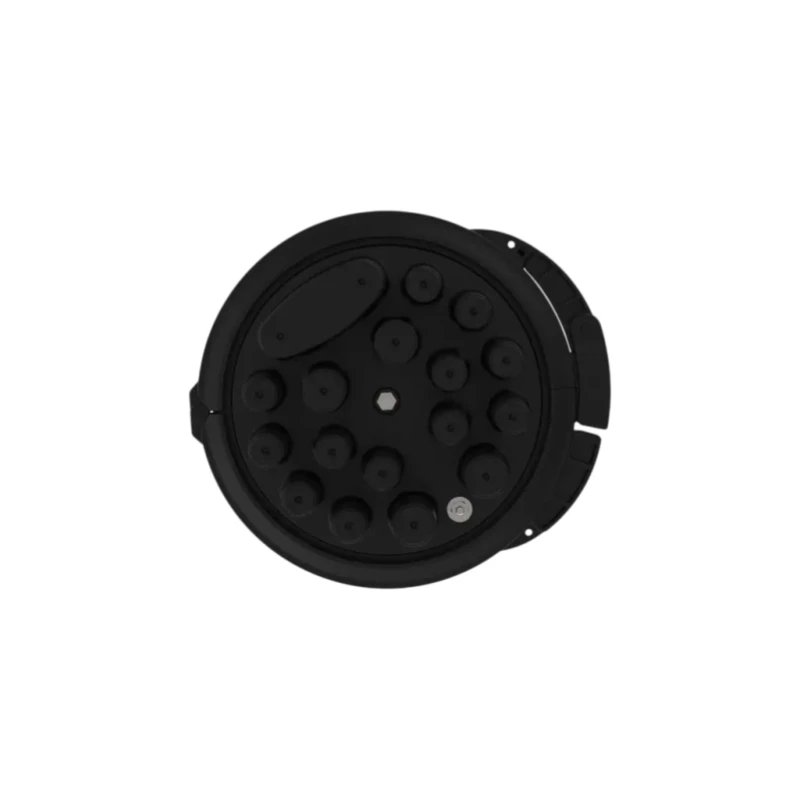

1 Oval(Φ10~25mm)+12 Small Round Ports(Φ8~16mm)+4 Large Round Ports(Φ4~22mm)
Heat shrink sealing up to 144F
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-5817-A | ||
|---|---|---|---|
| Style | Dome/ Vertical | ||
| Dimensions (mm) | 375 × Φ300 | ||
| Material | PP+GF | ||
| Sealing Type | Mechanical sealing | ||
| Protection Grade | IP68 | ||
| Cable Ports | Uncut(Oval) | 1 | Φ10 - Φ25 mm |
| Branch(Round) | 12 | Φ8 - Φ16 mm | |
| Branch(Round) | 4 | Φ14- Φ22 mm | |
| Fiber Splice Capacity | 144F | ||
