Fiber Splice Closure

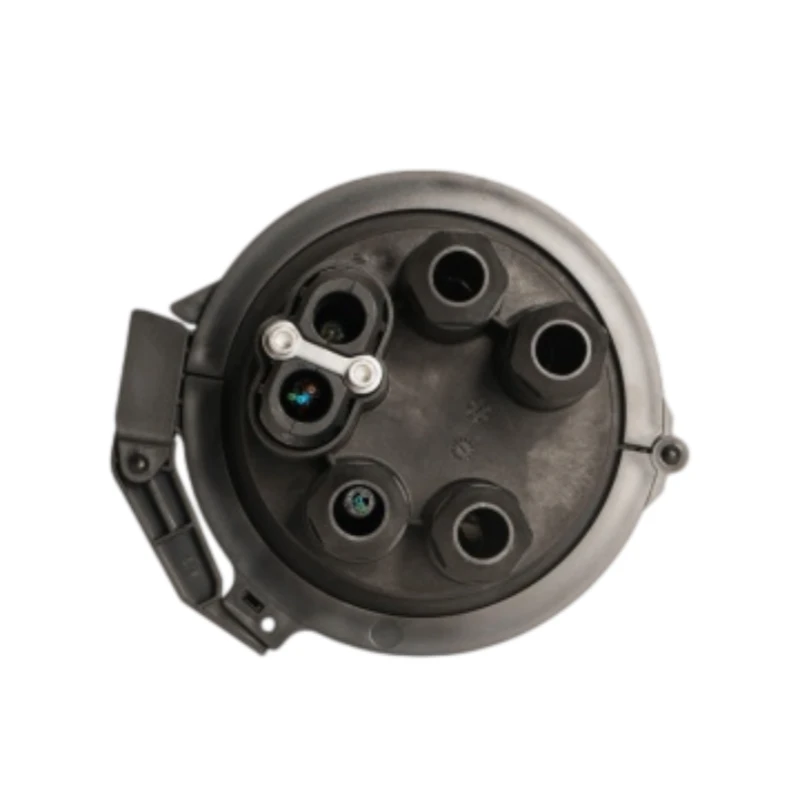

144 Fiber Dome Closure 1 Oval+4 Round Port Mechanical Sealing
144 Fiber Dome Closure 1 Oval+4 Round Port Mechanical Sealing
144 Fiber Dome Closure 1 Oval+4 Round Port Mechanical Sealing

GPJ09-5601 Fiber Optic Splice Closure. This splice closure is widely deployed in long-haul trunk networks, metropolitan area networks and local access networks, enabling straight-through splicing, branch splicing and optical splitting of fiber cables. It is compatible with loose-tube, slotted-core and ribbon fiber cables, and accommodates passive components such as mini PLC splitters to meet diverse network architecture requirements. Multiple installation options are available, including aerial, pole-mounted, wall-mounted and underground installation deployment.

Features

1 Oval(Φ8~18mm)+4 Round Ports(Φ3~18mm)
Mechanical Seal up to 144 Fiber
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial

Application

FTTx solution
Telecommunication
Optical Fiber Communication

Specification
Model No. GPJ09-5601
Style Dome/ Vertical
Dimensions (mm) 460 × Φ225
Material PP+GF
Sealing Type Mechanical Seal
Protection Grade IP68
Cable Ports Uncut(Oval) 1 Φ8 - Φ18 mm
Branch(Round) 4 Φ3 - Φ18 mm
Fiber Splice Capacity(Ribbon) 144
