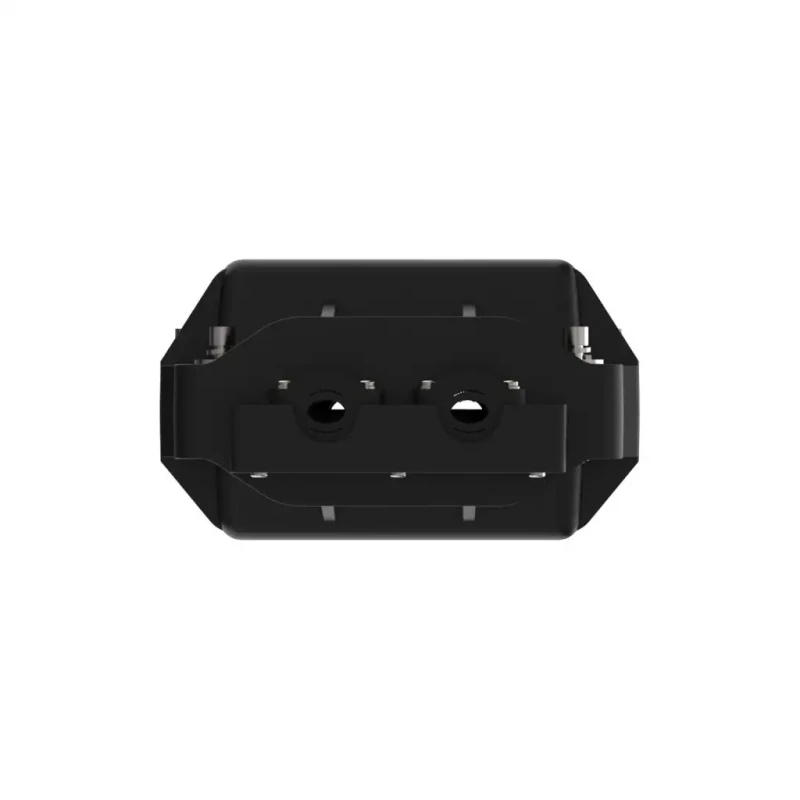

GPJ09-6804 Fiber Optic Splice Closures is an optical cable termination connector that links to optical switches via fiber patch cords.It blocks temperature variation, light, oxygen and microorganisms to slow cable and fitting aging, offering waterproof, flame-retardant protection against vibration, impact, tension and torsion.Suitable for all optical cable structures with aerial, pipeline and underground installation, it enables straight-through and branch splicing, guarantees stable network operation and eases network design, management and maintenance.
2 inlets (Ф10-20 mm), 2 outlets (Ф10-20 mm)
Mechanical Seal up to 72 Fibers
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-6804 | ||
|---|---|---|---|
| Style | Inline/ Horizontal | ||
| Dimensions (L×W×H) | 533×208×122 mm | ||
| Material | PP+GF | ||
| Sealing Type | Mechanical Seal | ||
| Protection Grade | IP68 | ||
| Cable Ports | Inlet | 2 | Φ10 - Φ20 mm |
| Outlet | 2 | ||
| Fiber Splice Capacity | Single | 72 | |
| Ribbon | 432 | ||
| Tray Capacity | Single | 24 | |
| Ribbon | 12 | ||
| Tray Count | 3 | ||
| Weight | 4.0 - 4.5 kg | ||
| Application | Aerial/ Bracket Mounting/ Duct Mounting/ Handhole/ Manhole | ||
| Packing Type | Inner Carton | 575×225×140 mm (1 PCS) | |
| Outer Carton | 595×475×470 mm (6 PCS) | ||
