GPJ09-5829 Fiber Optical Splice Closure is widely used in various optical fiber network applications for cable splicing and line branching. It can be equipped with 1:4, 1:8 and 1:16 miniature optical splitters to realize optical splitting. Compatible with optical cables of various specifications, it meets diverse indoor and outdoor wiring and installation requirements. This product supports aerial, pole, wall and underground mounting.

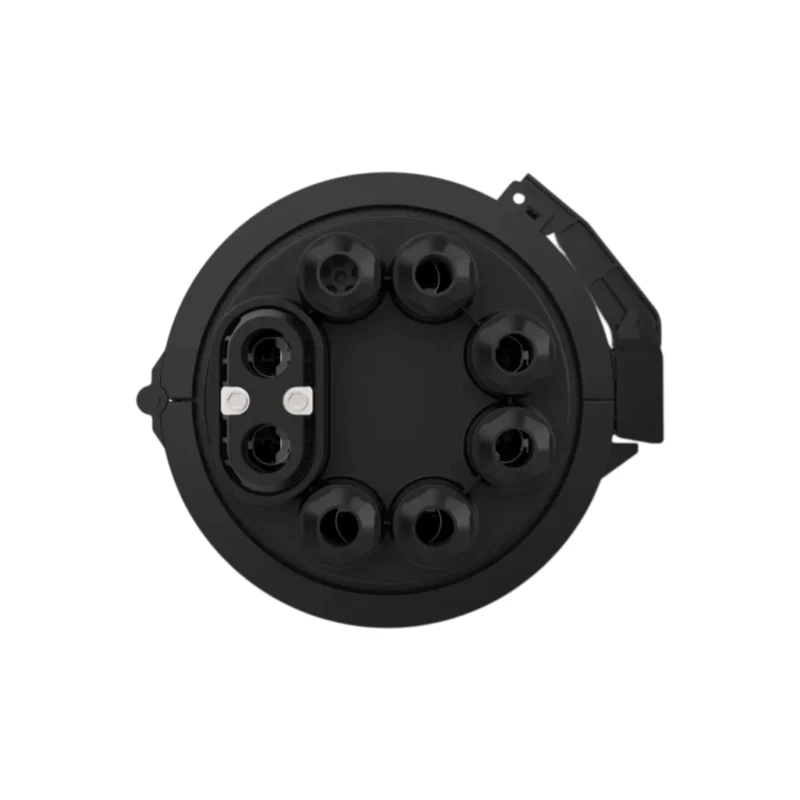

1 Oval(Φ8~26mm)+6 Round Ports(Φ3~18mm)
Mechanical sealing up to 288F
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-5829 | ||
|---|---|---|---|
| Style | Dome/ Vertical | ||
| Dimensions (mm) | 610 × Φ260 | ||
| Material | PP+GF | ||
| Sealing Type | Mechanical sealing | ||
| Protection Grade | IP68 | ||
| Cable Ports | Uncut(Oval) | 1 | Φ8 - Φ26 mm |
| Branch(Round) | 6 | Φ3 - Φ18 mm | |
| Fiber Splice Capacity(Ribbon) | 288F | ||
