GPJ09-5822 series dome closures feature the big capacity design of maximum 720 fibers. There are 1 uncut port, 7 branch ports, and 2 drop ports at the base, Φ8-18mm. The splice trays inside are interchangeable with splitter trays. The sealing type of this series is mechanical, IP68 waterproof. The rugged housing contributes to their long lifespan in the harsh environment.

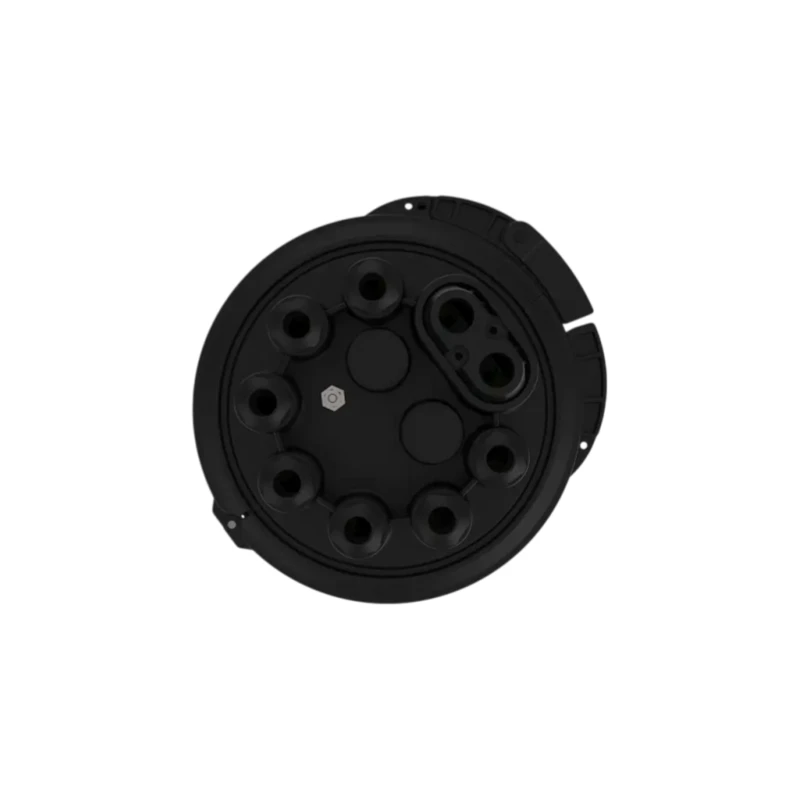

1 Oval(Φ10~25mm)+7 Round Ports(Φ8~18mm)
Mechanical sealing up to 648F
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-5822-C | ||
|---|---|---|---|
| Style | Dome/ Vertical | ||
| Dimensions (mm) | 660 × Φ300 | ||
| Material | PP+GF | ||
| Sealing Type | Mechanical sealing | ||
| Protection Grade | IP68 | ||
| Cable Ports | Uncut(Oval) | 1 | Φ10 - Φ25 mm |
| Branch(Round) | 7 | Φ8 - Φ18 mm | |
| Fiber Splice Capacity(Ribbon) | 648 | ||
