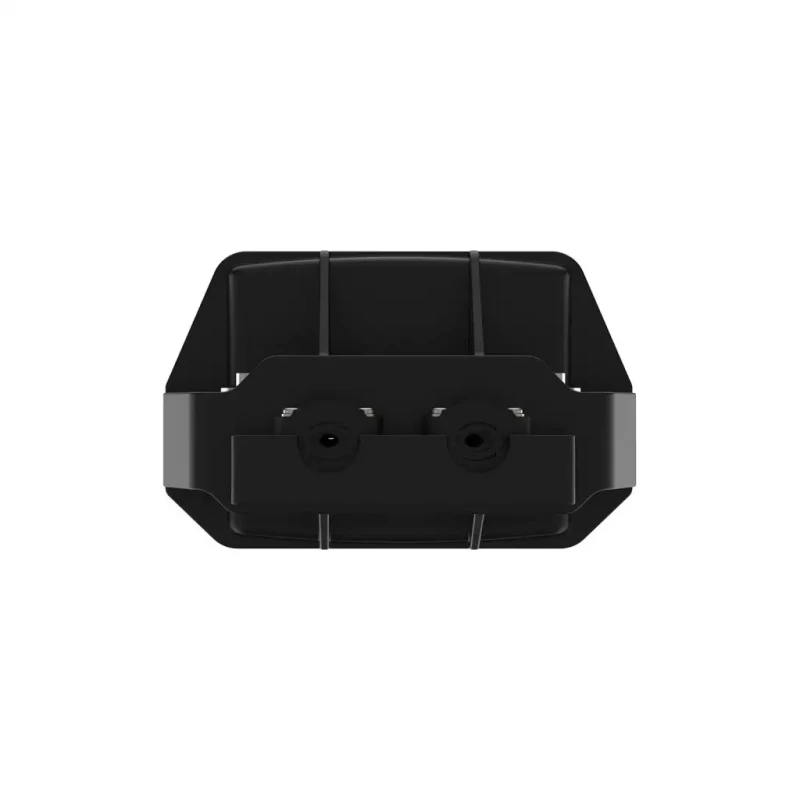

GPJ09-6807 Fiber Optic Splice Closures is used for optical cable termination and links to optical switches with fiber patch cords. Made of modified PP, it features great weatherability, corrosion resistance, UV protection, waterproof and anti-impact properties. It supports straight-through and branch connections for optical cables under aerial, pipeline and underground deployment
2 inlets, 2 outlets, Ф10-20 mm
Mechanical Seal up to 96 Fibers
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-6807 | ||
|---|---|---|---|
| Style | Inline/Horizontal | ||
| Dimensions (L×W×H) | 420×201×128 mm | ||
| Material | PP+GF | ||
| Sealing Type | Mechanical Seal | ||
| Protection Grade | IP68 | ||
| Cable Ports | Inlet | 2 | Φ10 - Φ20 mm |
| Outlet | 2 | ||
| Fiber Splice Capacity | 96 | ||
| Tray Capacity | 24 | ||
| Tray Count | 4 | ||
| Weight | 2.2 - 2.7 kg | ||
| Application | Aerial/ Duct Mounting | ||
| Packing Type | Inner Carton | 440×220×150 mm (1 PCS) | |
| Outer Carton | 460×460×480 mm (6 PCS) | ||
