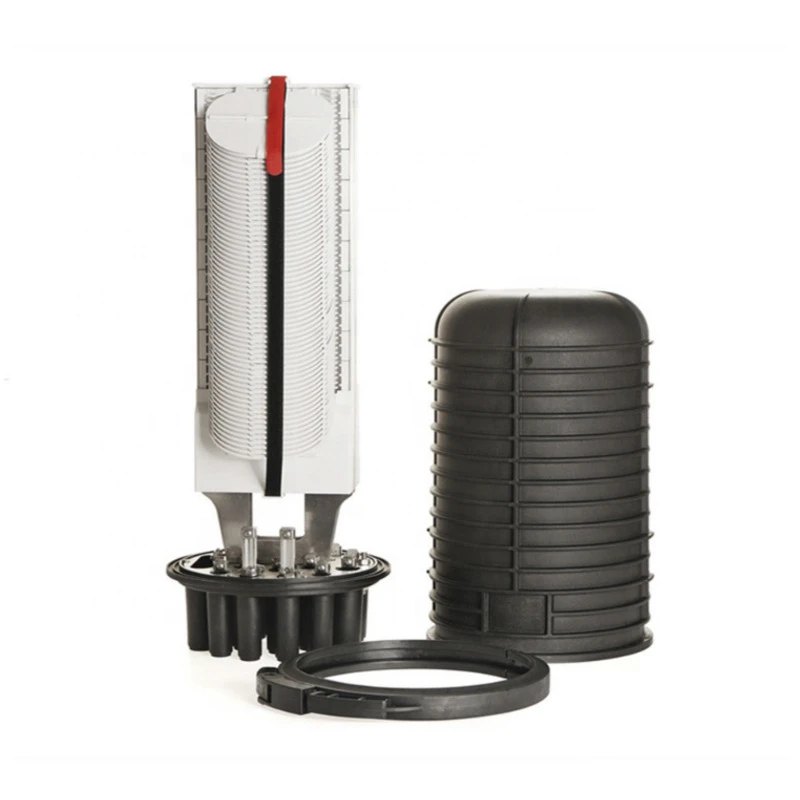

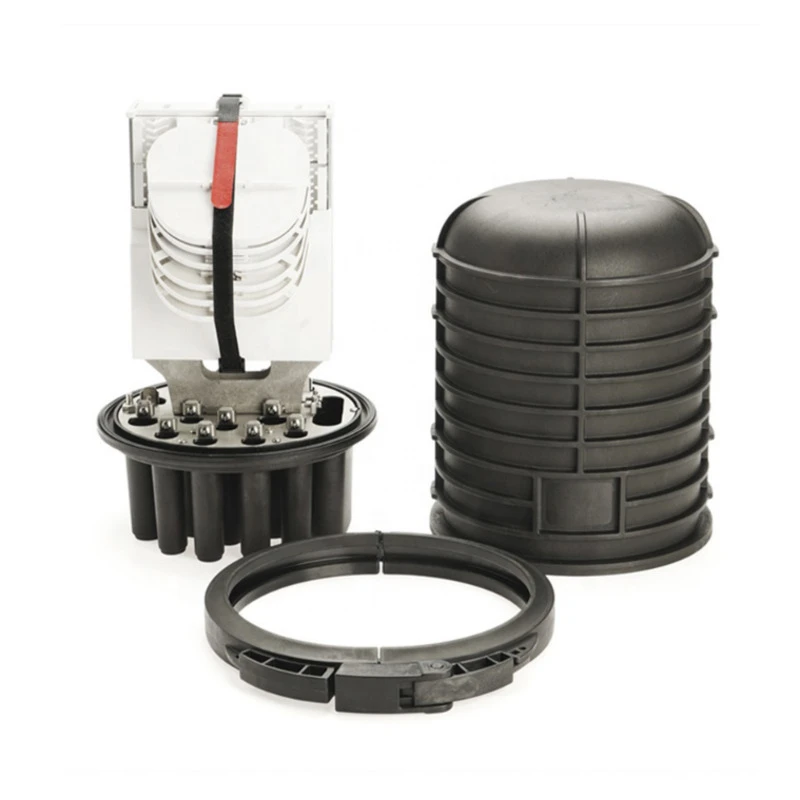

GPJ09-5817 series dome closures feature the high-capacity design. The fusion splice capacity range is 144F~648F, with 24F/ 12F/ 6F tray capacity. The splice trays for the joint closures are interchangeable with splitter trays. Both fusion splice and splitter installation are feasible. Employing the heat shrink seal, the protection grade of this series can reach IP68.
Made of modified polymer plastic High strength and corrosion resistance
High capacity up to 720F IP68 Waterproof Grade
FTTx networks Telecommunication
Optical fiber communication
| Model No. | GPJ09-5817-C | |||
|---|---|---|---|---|
| Style | Dome/ Vertical | |||
| Dimensions (H*D) | 625 × Φ270 | |||
| Material | PP+GF | |||
| Sealing Type | Heat Shrink/ Mechanical Seal | |||
| Protection Grade | IP68 | |||

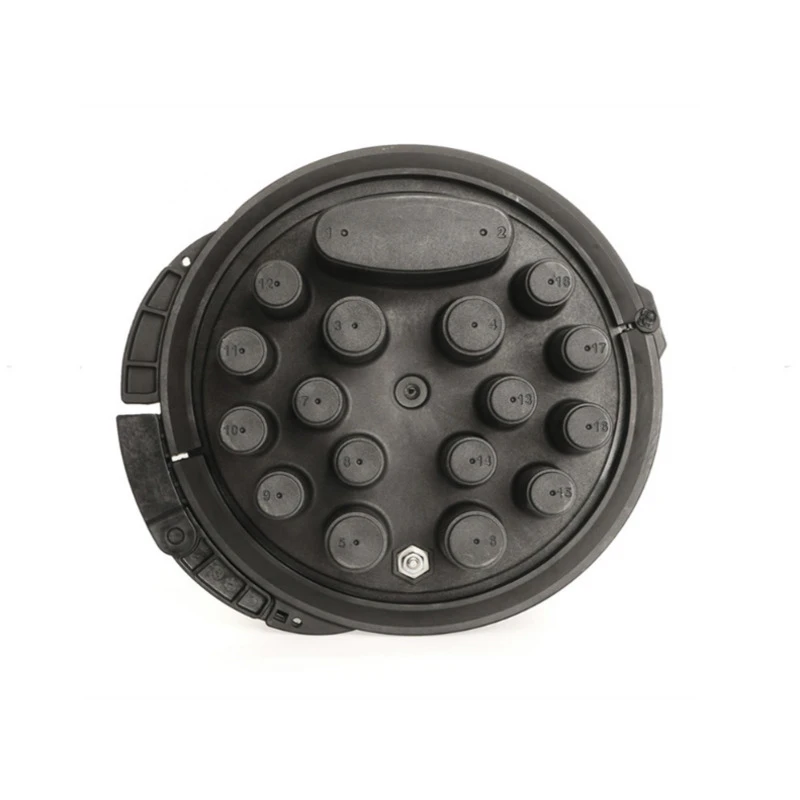

| Cable Ports | Uncut | Oval | 1 | Φ10 - Φ25 mm |
| Branch | Round | 4 | Φ14 - Φ22 mm | |
| 12 | Φ8 - Φ16 mm | |||
| Fiber Splice Capacity | 648 | |||
| Tray Capacity | 12 | |||
| Tray Count | 54 | |||
| PLC Splitters | 1:4 Mini | 2 PCS | ||
| 1:8 Mini | 1 PC | |||
| Weight | 9.5 - 12.0 kg | |||
| Application | Aerial/ Wall Mounting/ Direct Burial | |||
| Packing Type | Inner Carton | 775×315×285 mm (1 PCS) | ||
| Outer Carton | - | |||
