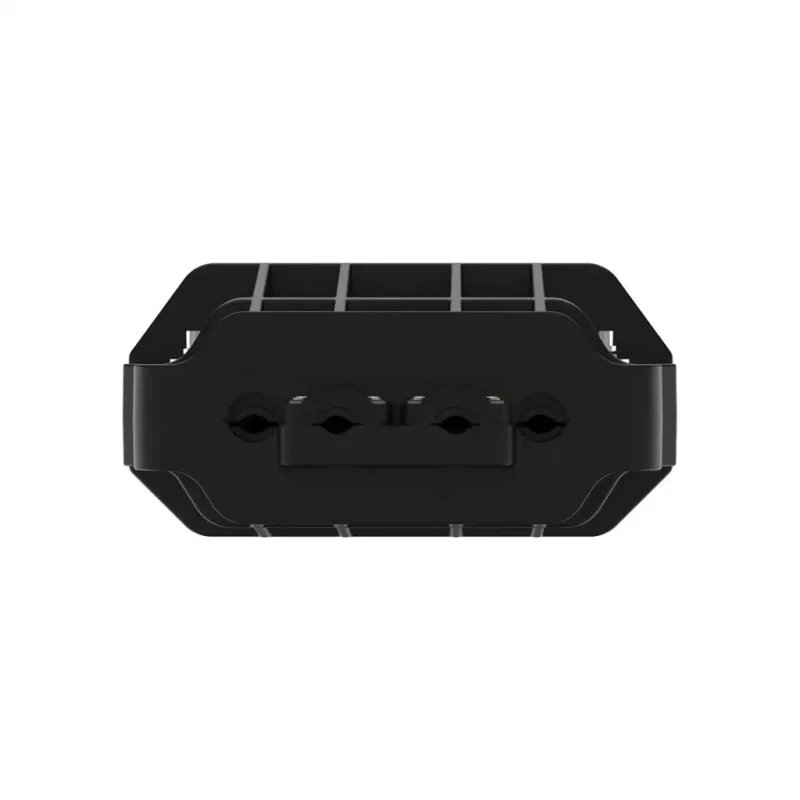

GPJ09-6805 Fiber Optic Splice Closures is core protection for cable splicing, realizing straight and branch cable connections and connecting to optical switches with fiber patch cords. Made of modified PP with mechanical sealing, it is weather-resistant, anti-corrosive, impact-resistant, flame-retardant and waterproof, shielding splice points against environmental and mechanical damage for aerial, wall-mounted and underground applications.
4 inlets, 4 outlets, Ф10-18 mm
Mechanical Seal up to 96 Fibers
IP68 Waterproof
Material: PP+GF
Wall mounting, aerial, duct mounting, direct burial
FTTx solution
Telecommunication
Optical Fiber Communication
| Model No. | GPJ09-6805 | ||
|---|---|---|---|
| Style | Inline/Horizontal | ||
| Dimensions (L×W×H) | 555×217×120 mm | ||
| Material | Polymer Modified Plastics | ||
| Sealing Type | Mechanical Seal | ||
| Protection Grade | IP68 | ||
| Cable Ports | Inlet | 4 | Φ10 - Φ18 mm |
| Outlet | 4 | ||
| Fiber Splice Capacity | 96 | ||
| Tray Capacity | 24 | ||
| Tray Count | 4 | ||
| Weight | 4.0 - 4.5 kg | ||
| Application | Aerial/Duct Mounting | ||
| Packing Type | Inner Carton | 620×235×125 mm (1 PCS) | |
| Outer Carton | 640×490×425 mm (6 PCS) | ||
