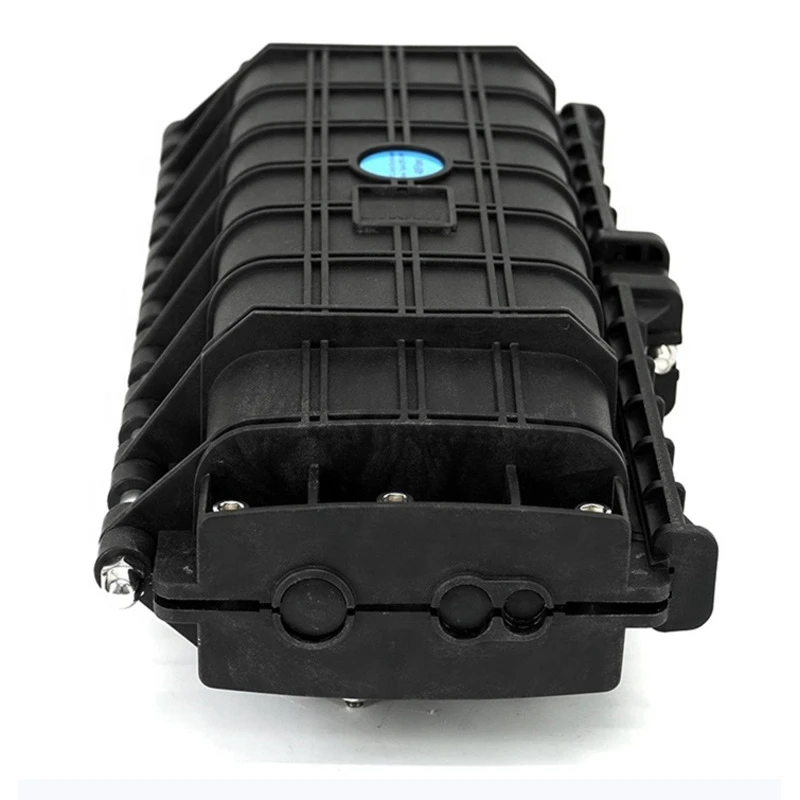

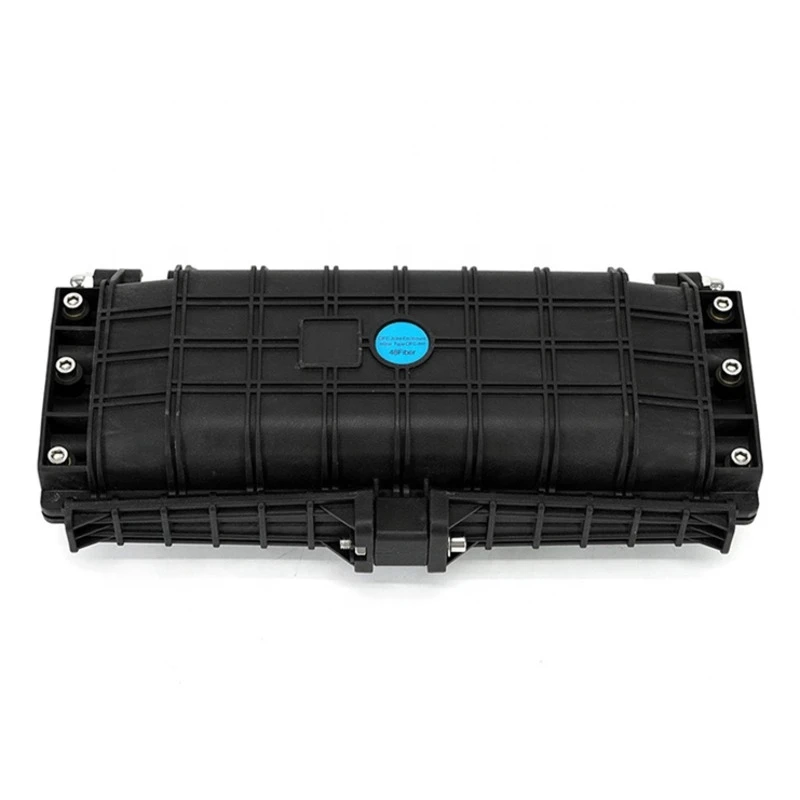

GPJ09-6820 inline closure with a hinged door for easy access and maintenance is an innovate solution to manage up to 96 fibers. The enclosure is ruggedized for harsh environment with IP68 rating, featuring the screw-and-buckle mechanical sealing structure and one-piece sealing rubber convenient for closure opening. It has multiple installation apllication for FTTH with wall mount, aerial and duct mount.
Made of modified polymer plastic High strength and corrosion resistance
Mechanical Seal IP68 Waterproof Grade
Wall mounting, aerial, duct mounting
FTTx networks Telecommunication
Optical fiber communication
| Model No. | GPJ09-6820 | ||
|---|---|---|---|
| Style | Inline/Horizontal | ||
| Dimensions (L×W×H) | 396×200×126 mm | ||
| Material | Polymer Modified Plastics | ||
| Sealing Type | Mechanical Seal | ||
| Protection Grade | IP68 | ||
| Cable Ports | Inlet | 3 | Φ8 - Φ20 mm |
| Outlet | 3 | ||
| Fiber Splice Capacity | Min 12, Max 96 | ||
| Tray Capacity | 24 | ||
| Tray Count | 4 | ||
| Weight | 2.5 - 2.7 kg | ||
| Application | Aerial/ Wall Mounting/ Duct Mounting | ||
| Packing Type | Inner Carton | 440×200×130 mm (1 PCS) | |
| Outer Carton | 460×420×420 mm (6 PCS) | ||
