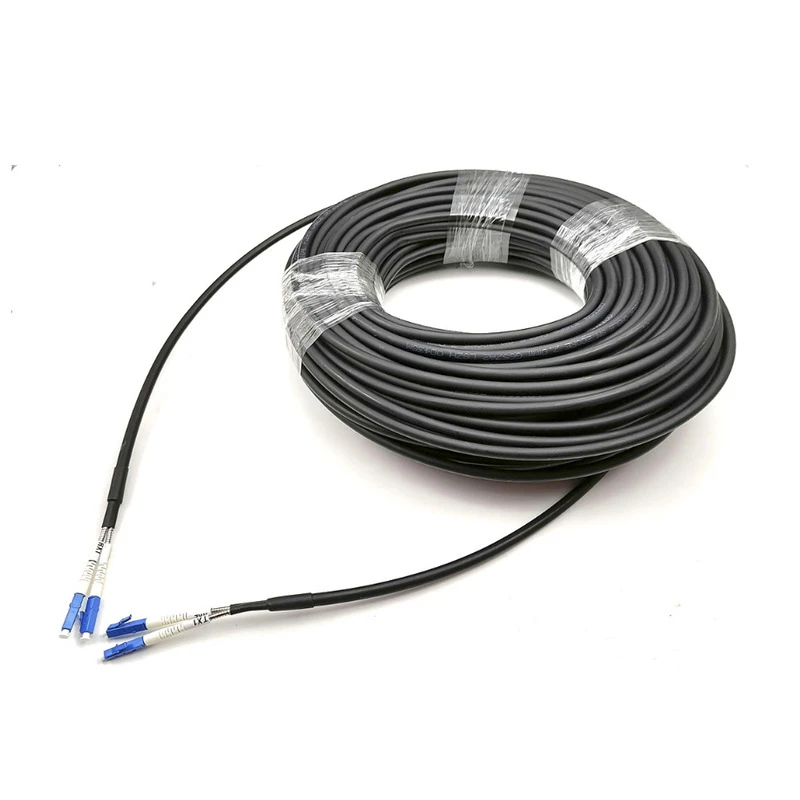

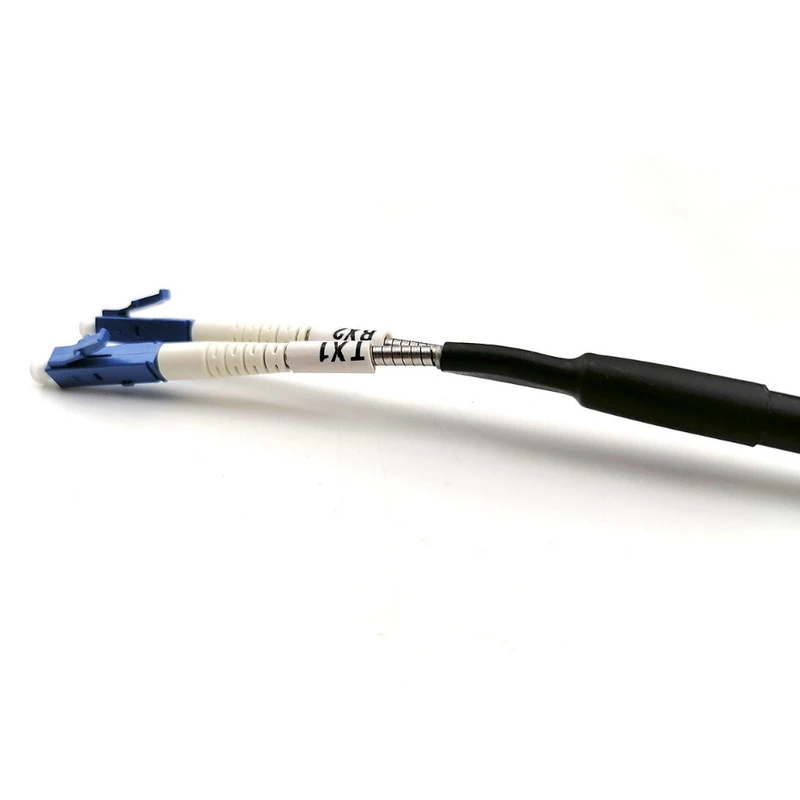

The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder,it with standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
Openbulkhead for easy access to SFP Positivemechanical feedback to operator when fully mated
One-handmating Plughas tolerance free design, fully free floating on Z-axis
NoCable buckling during or after installation Costeffective metal die cast bulkhead
Fieldinstallable version available Waterproof, dust proof and corrosion resistant
Goodmechanical and environmental characteristics; Flameretardant characteristics meet the requirements of relevant standards;
Themechanical characteristics of jacket meet the requirements of relevant standards; Soft,flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Meetvarious requirements of market and clients Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiverreplacement)
Robustbayonet locking for easy, fast, and secure mating
Deployment in Remote Radio Head cell tower applications For connection between distribution box and RRH
Multi-purpose Outdoor
| Cable Dimension | 4.8/7.0mm |
|---|---|
| Cable Type | GYFJH |
| Fiber Count | 2 Fibers |
| Connector Type | LC/UPC or Others |
| Fiber Type | SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
| Jacket Material | LSZH Black |
| Strength Member | Kevlar |
| Cable Length | 10M 20M 30M 50M 70M..or Customized |
