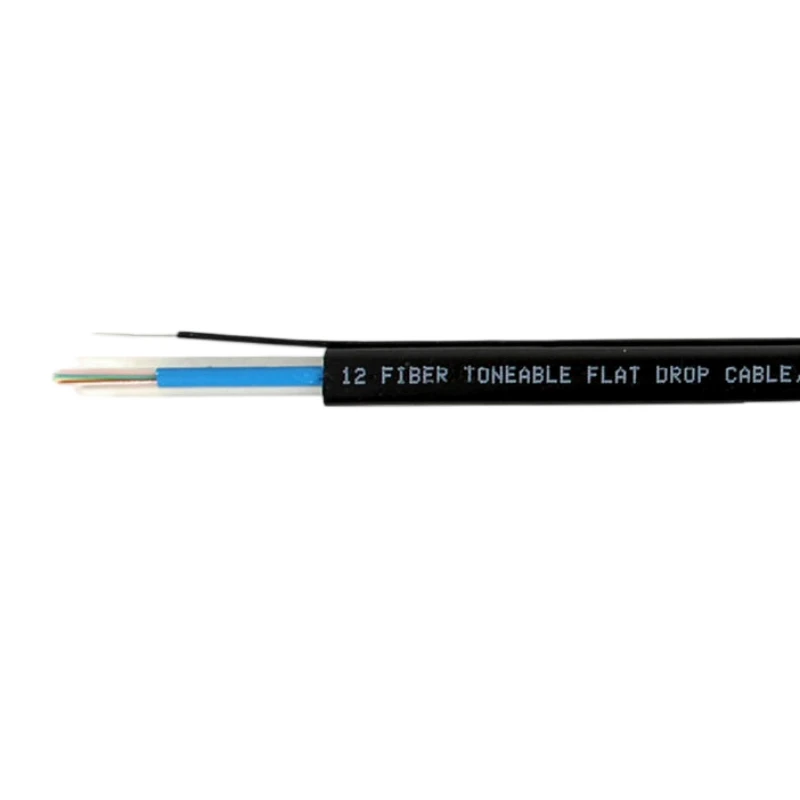

1~12 Fiber FTTP Dielectric Flat Drop Cable offer the ease of installation of standard in an easy-access, single-tube design. The cables offer exceptional crush resistance while the copper portion allows for clear detection in underground installation.
Easily removable copper wire allows fast cable location while facilitating bonding and grounding;
Suitable for direct buried and duct FTTX drop installations, and aerial self-supporting applications;
Hardend with different type outdoor mini sc/apc connectors.
Drop cables
Broadband network
Local loop
FTTX
Aerial or direct bury
| Items | Specifications | |
|---|---|---|
| Fiber Category | G657A1 | |
| Loose tube | Fiber Count | 1~12 |
| Material | PBT | |
| Thickness | 0.35（±0.05）mm | |
| Diameter | 2.4（±0.1）mm | |
| Strength Member | Material | FRP |
| O.D. | 1.5（±0.05）mm | |
| Quantity | 2 | |
| Copper wire (O.D.) | 0.5（±0.05）mm | |
| Outer Sheath | Material | HDPE |
| Color | Black | |
| Cable Size(HxW) | (4.3±0.2)×(9.0±0.2)mm | |
| Cable Weight | 40（±5）kg/km | |
| Max. allowable tension | Short‑Term | 1335N |
| Long‑Term | 667N | |
| Crush resistance test | 1000N/10cm | |
| Min. bending radius | Static | 15cm |
| dynamic | 7.5cm | |
| Temperature range(℃) | Installation | -30~ 60 |
| Transport&Storage | -40~ 75 | |
| Operation | -40~ 70 | |
