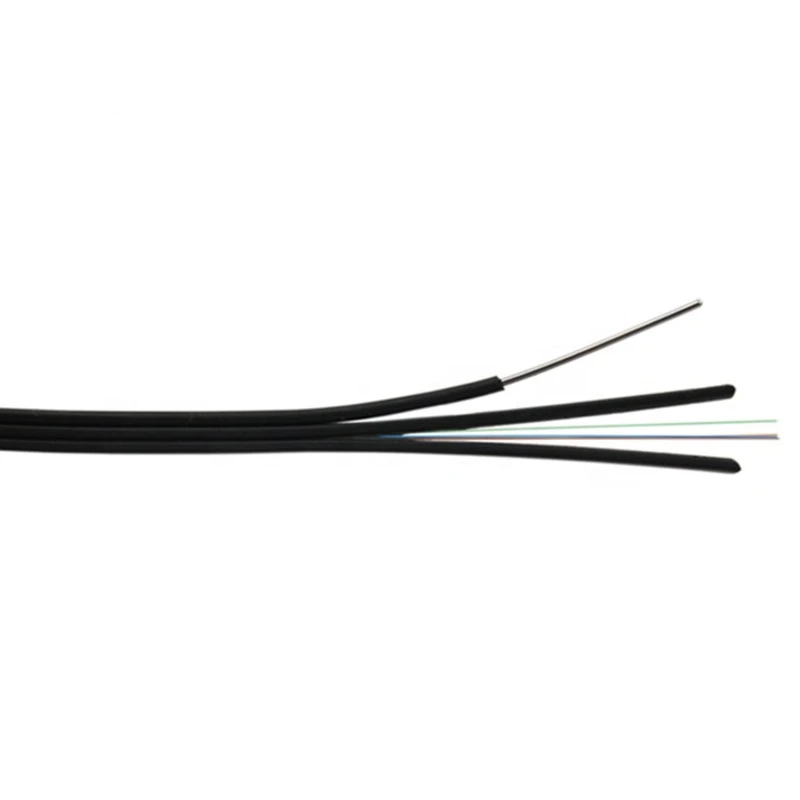

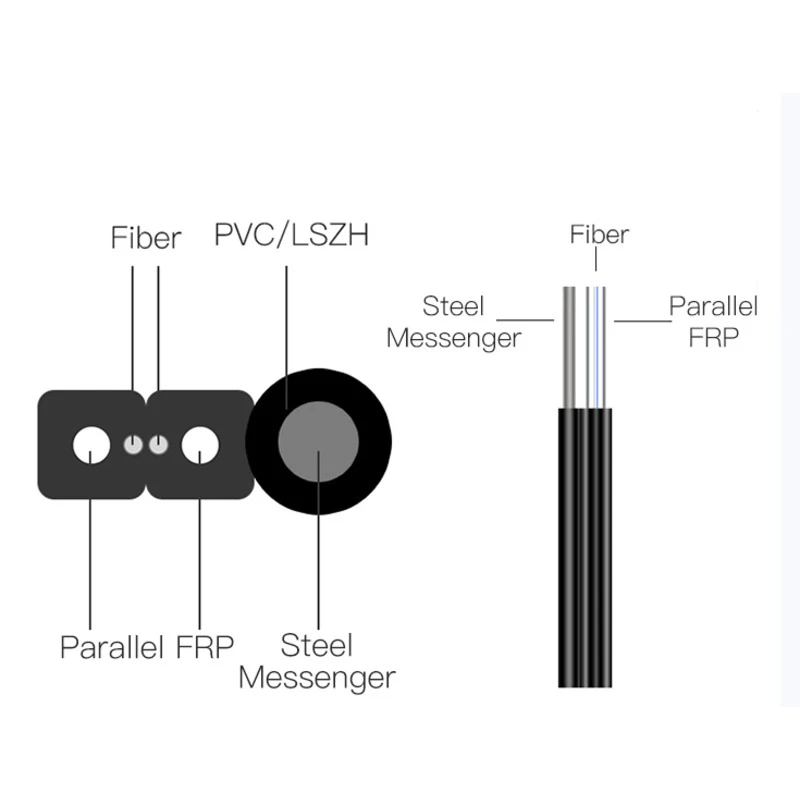

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by two parallel strength members made of KFRP, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
High performance optical network operation. Self-supporting structure, light weight, easy to install.
Durable and flame retardant LSZH sheath, low smoke zero halogen Steel wire as additional strength member has high tensile strength
Two parallel KFRP strength members
Outdoor aerial application. Used in the FTTH projects.
High speed optical routes in building
| Items | Specifications | |
|---|---|---|
| Fiber Count | 1F 2F 4F | |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Blue Orange | |
| Jacket | Dimension | (2.0±0.1)mm×(5.1±0.1)mm |
| Material | LSZH | |
| Color | Black | |
| Strength Member | FRP and Steel Wire | |
