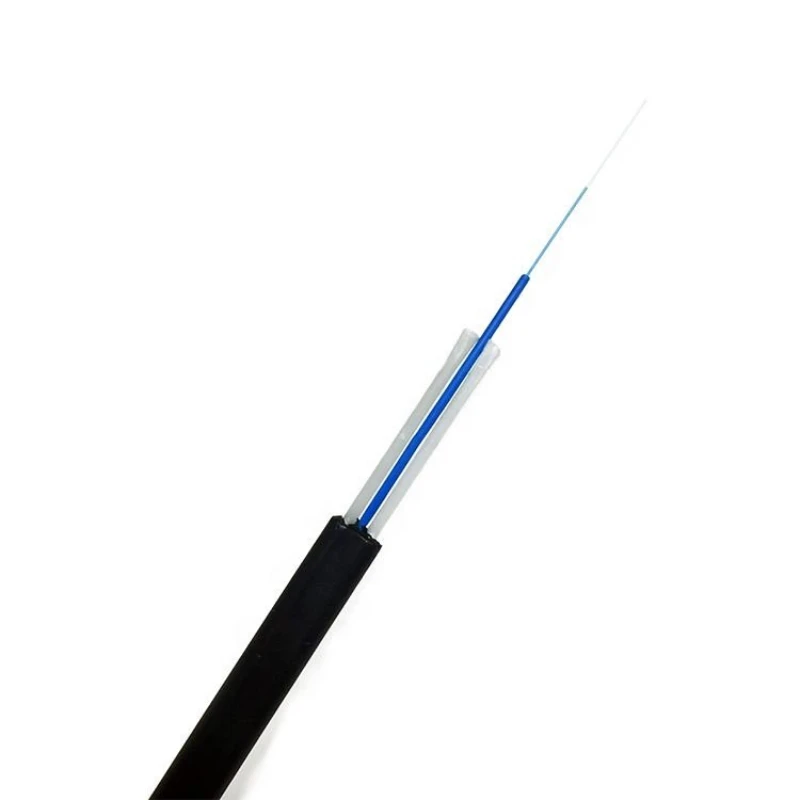

ROC dielectric drop cable reinforced oval-shaped with dual FRP rods. It is more flexible than standard flat cables, with better bending and wall-routing performance.Designed for rapid field deployment.
Rugged HDPE outer sheath
Dual FRP strength members
Tight buffered 0.9mm fibers
Aerial FTTH Drop Installation
Outdoor Subscriber Access Cabling
Pole-to-premise Fiber Connections
Pre-connectorized plug-and-play deployments
| Items | Specifications | |
|---|---|---|
| Fiber Model | GYFJBY | |
| Loose tube(Tight buffer) | Material | Tight buffer |
| Thickness | 0.32(±0.03)mm | |
| Diameter | 0.9(±0.05)mm | |
| Color | Blue | |
| Strength Member | Material | FRP(fiberglass reinforced plastic) |
| Diameter | 1.2(±0.05)mm | |
| No. | 2 | |
| Outer Sheath | Material | HDPE |
| Color | Black | |
| Cable Diameter | 5.4x3.0 ±0.2mm | |
| Cable Weight | 15(±2)kg/km | |
| Max. allowable tension | Short‑term | 1350N |
| Long‑term | 400N | |
| Crush resistance test | 1000N/10cm | |
| Min. bending radius | Static | 20x cable Ø |
| dynamic | 10x cable Ø | |
| Temperature range(℃) | Installation | 0~+70 |
| Transport&Storage | -40~+70 | |
| Operation | -40~+70 | |
