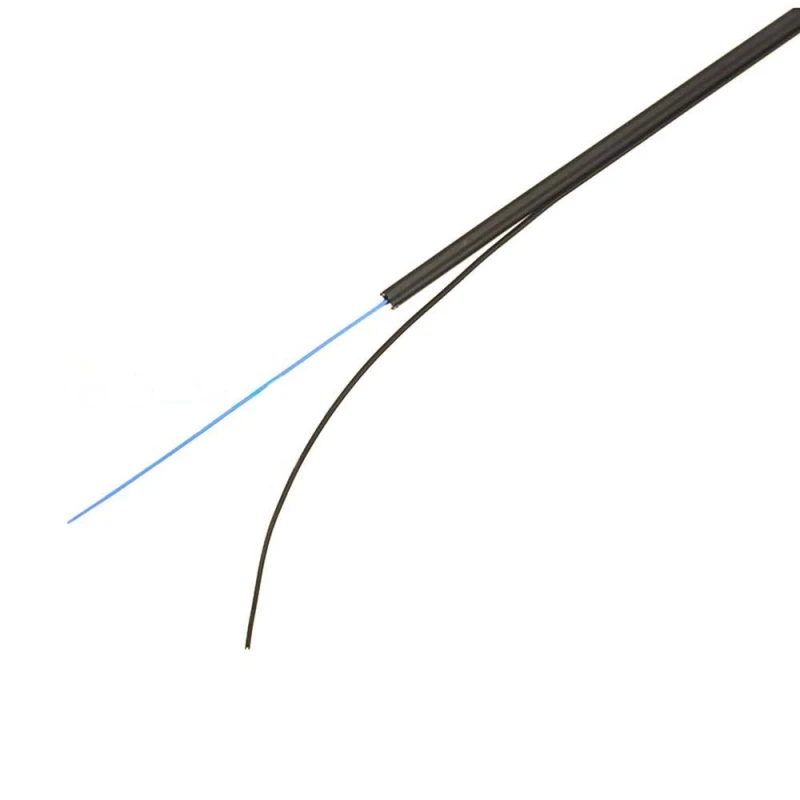

ROC Drop Toneable Cables with Fast AccessTechnology provides a more efficient, craft-friendly cable preparation unparalleled by traditional flat drop cables. The innovative Fast Access Technology design simplifies removal of the cable jacket resulting in up to 55 percent faster fiber access time than traditional drop cables. This technology improves ease of use because no special tools are needed. The cable design is backward compatible for easy connectorization or splicing. Optimized for both field-and-factory termination processes, the compact design allows for easier handling in the field, reduces slack storage requirements and improves transportation and storage costs. The toneable version allows for easy detection of buried cables with a toning conductor. ROC Drop Toneable with FastAccess Technology are also available in preconnectorized assemblies.
Saves time and reduces complexity
Ease of use
Enables fast connectorization and splicing
Retains industry standard hardware compatibility such as wedge clamps
Eliminates bonding and grounding requirements
Improves ease of handling and installation; reduces transportation and storage costs
Fiber to The Home(FTTH);
Fiber to The Premises(FTTP);
| Items | Specifications | |
|---|---|---|
| Fiber Category | G657A1 | |
| Fiber | Fiber Count | 1F |
| Primary Coating | 900µm PVC | |
| Strength Member | Material | FRP |
| O.D. | 1.2±0.1mm | |
| Outer Jacket | Material | HDPE |
| Color | Black | |
| Size(HxW) | 3X6.6 ±0.1mm | |
| Toneable Wire | Material | 24 AWG Copper Wire |
| O.D. | 0.5mm | |
| Max. Tensile Strength | Short‑Term | 1350 N (300 lbf) |
| Long‑Term | 400 N (90 lbf) | |
| Temperature range(℃) | Storage Temperature | -40~+70 |
| Installation Temperature | -10~+70 | |
