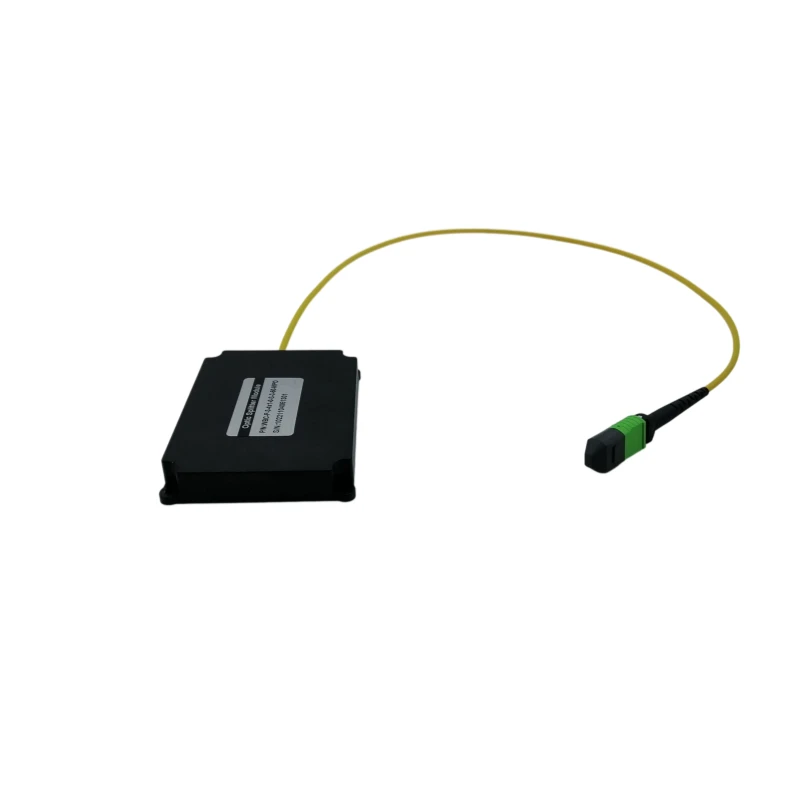

This module packed with 4pcs of 50/50 splitting ratio 1x2 FBT coupler in 80x60x12mm ABS box,it works with1310/1550nm,with 0.5m 3.0mm round cable, Elite MPO/APC(Male).
Low insertion loss
Low polarization dependent loss (PDL)
Good directivity
High temperature stability
FTTH network
Optical fiber CATV
Optical fiber communication system
Optical fiber testing equipment
Passive optical network (PON)
Optical fiber sensors
Local area network (LAN)
| Parameters | Specifications | Unit |
|---|---|---|
| Operating Wavelength | 1310 ±40 and 1550±40 | nm |
| Splitting Ratio | 50/50 | / |
| Insertion Loss1 | ≤4.3 | dB |
| Polarization Dependent Loss | <0.15 | dB |
| Directivity | >55 | dB |
| Return Loss | >45 | dB |
| Operating Temperature | -10~+70 | ℃ |
| Storage Temperature | -40~+85 | ℃ |
| Operating Relative Humidity | 5~95 | % |
| Storage Relative Humidity | 5~100 | % |
| Pigtail type | 3.0mm round cable | |
| Fiber Length | 0.5(±0.05) | m |
| Connector | 12 Core Elite MPO/APC(M) | / |
| Package size | 80x60x12 | mm |
