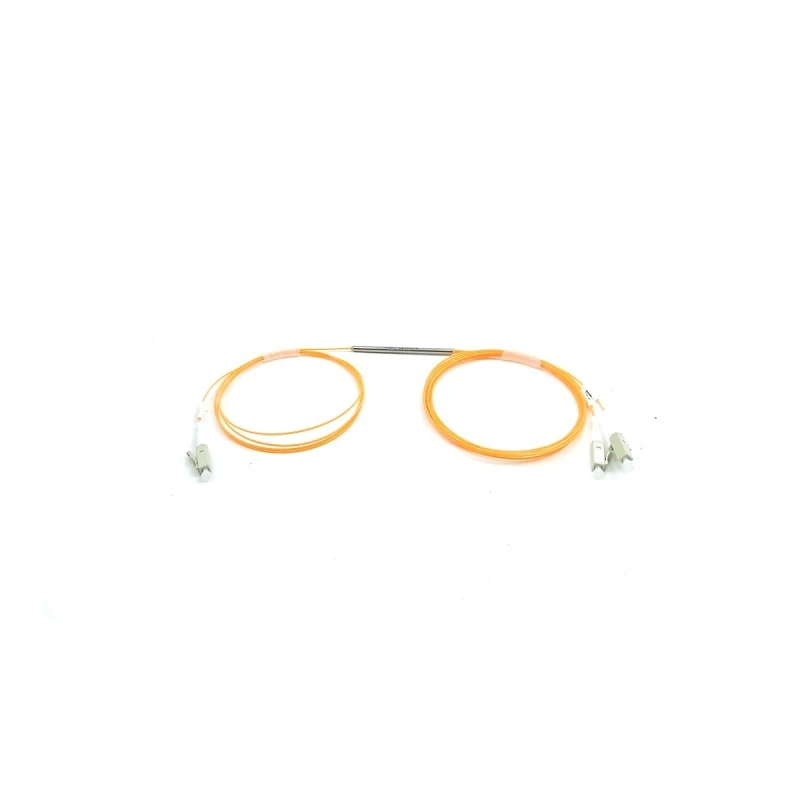

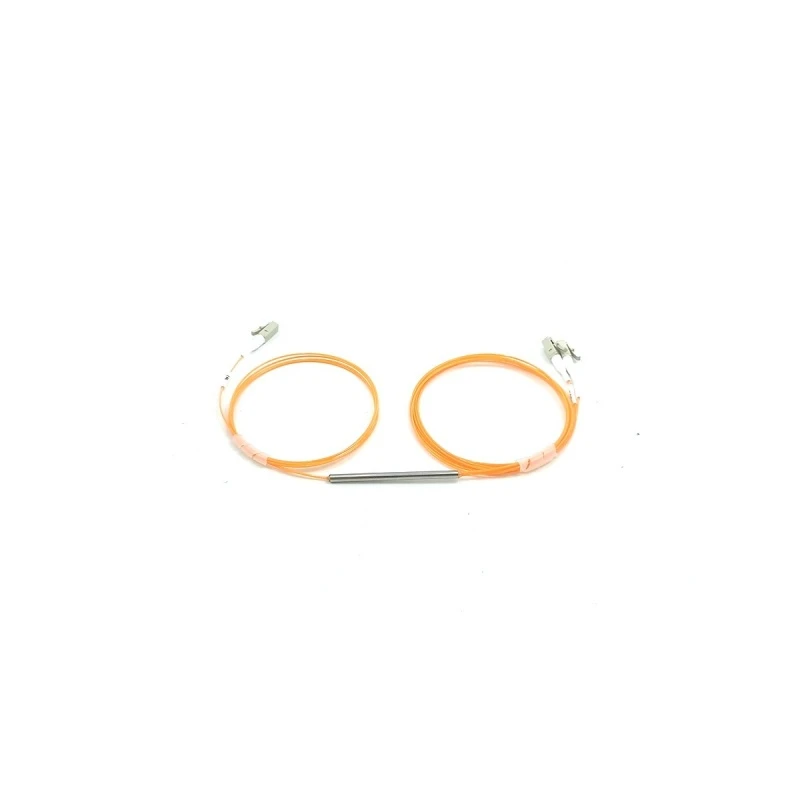

1×2(2×2) multimode fiber FBT coupler is also known as multimode fiber coupling, which is built to split the optical power or wavelength through Fused Biconic Taper (FBT) technique. 1x2(2x2) multimode fiber coupling is made by 50/125 or 62.5/125 Multi-mode fiber.
Low Excess Loss
Single Fusion Design
Uniform Power Splitting
Compact Size
Optical communication systems
CATV
Local Area Networks
Testing instruments
| Parameter | Specification | |
|---|---|---|
| Operating Wavelength(nm) | 850 | |
| Type | 1x2 | |
| Coupling Ratio(%) | 50/50 | |
| Insertion Loss(dB) | ≤3.7 | |
| Directivity(dB) | ≥40 | |
| Dimensions(mm) | OD 3.0 x 54 | |
| Fiber | OM3 50/125 | |
| Fiber Length(m) | 1.0±0.1 | |
| Pigtail Type(um) | 900 | |
| Connector | LC/UPC | |
| Operating Temperature(℃) | -20~85 | |
| Storage Temperature(℃) | -40~85 | |
