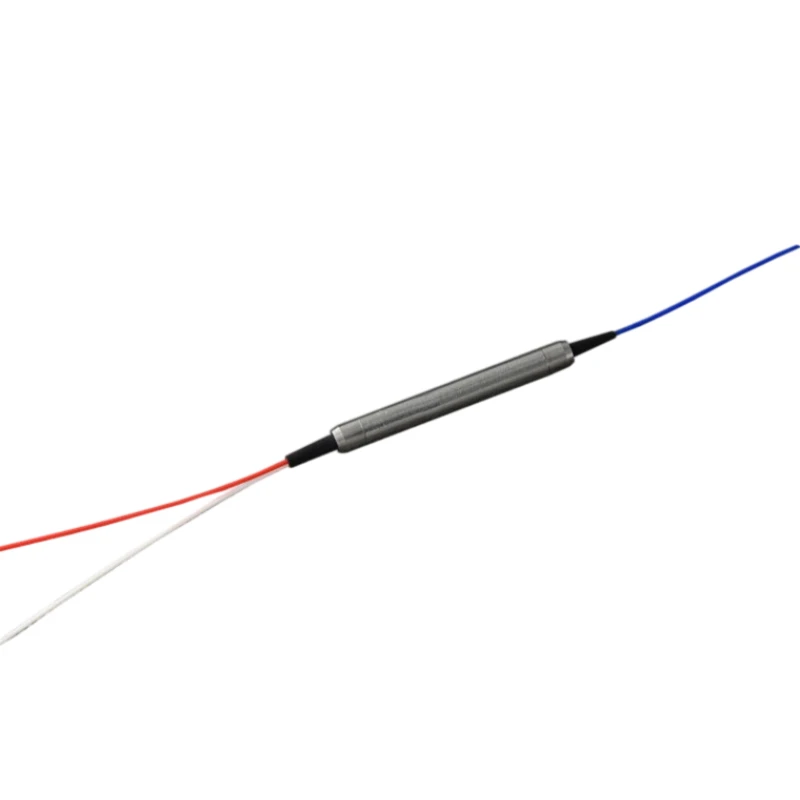

980/1550nm WDM/Isolator Hybrid Combination is a combination of a wavelength division multiplexer and an isolator in a compact package. All input and output fibers are polarization independent. This product has an extremely low insertion loss, high isolation, and high return loss. This product offers integrated solution to EDFA application by combining more functions into a very compact package.
Wide operating wavelength range
High channel isolation
Low Insertion Loss
Ultra low PDL & PMD
High stability and reliability
Epoxy free on optical path
Fiber optic Amplifiers
CATV fiber optic link
WDM system
Fiber optic instrument
| Parameter | 980/1550 nm + Isolator Single Stage |
980/1550 nm + Isolator Dual Stage |
1480/1550 nm + Isolator Single Stage |
1480/1550 nm + Isolator Dual Stage |
|---|---|---|---|---|
| Signal Wavelength Range | 1530‑1565nm | 1530‑1565nm | 1530‑1565nm | 1530‑1565nm |
| Pump Wavelength Range | 950‑1010 nm | 950‑1010 nm | 1450‑1490 nm | 1450‑1490 nm |
| Insertion Loss in Reflection | ≤ 0.6 dB | ≤ 0.6 dB | ≤ 0.6 dB | ≤ 0.6 dB |
| Insertion Loss in Transmission | ≤ 1.0 dB | ≤ 1.2 dB | ≤ 0.8 dB | ≤ 1.0 dB |
| Signal Isolation (at 23° C) | ≥ 28 dB | ≥ 38 dB | ≥ 28 dB | ≥ 43 dB |
| Return Loss | ≥ 45 dB | ≥ 45 dB | ≥ 45 dB | ≥ 45 dB |
| Maximum Power | 300 mW | 300 mW | 300 mW | 300 mW |
| PDL | ≤ 0.10 dB | ≤ 0.15 dB | ≤ 0.10 dB | ≤ 0.15 dB |
| Directivity | ≥ 50 dB | ≥ 50 dB | ≥ 50 dB | ≥ 50 dB |
| Operating Temperature | 0°C ~ +65°C | 0°C ~ +65°C | 0°C ~ +65°C | 0°C ~ +65°C |
| Storage Temperature | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C | -40°C ~ +85°C |
| Package Dimensions | 5.5mm (Φ) x 35.0mm (L) | 5.5mm (Φ) x 35.0mm (L) | 5.5mm (Φ) x 35.0mm (L) | 5.5mm (Φ) x 35.0mm (L) |
