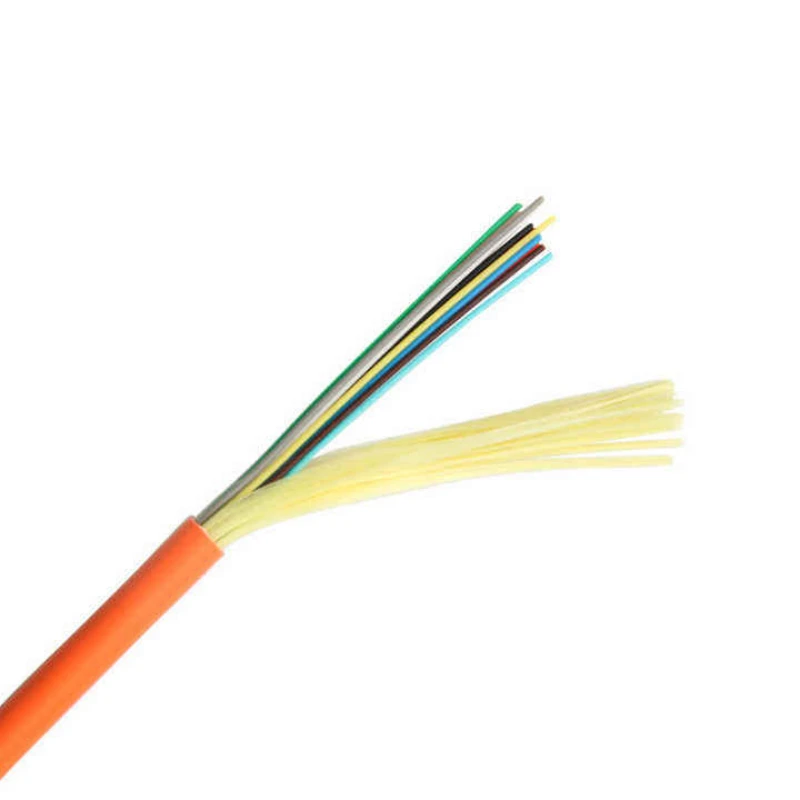

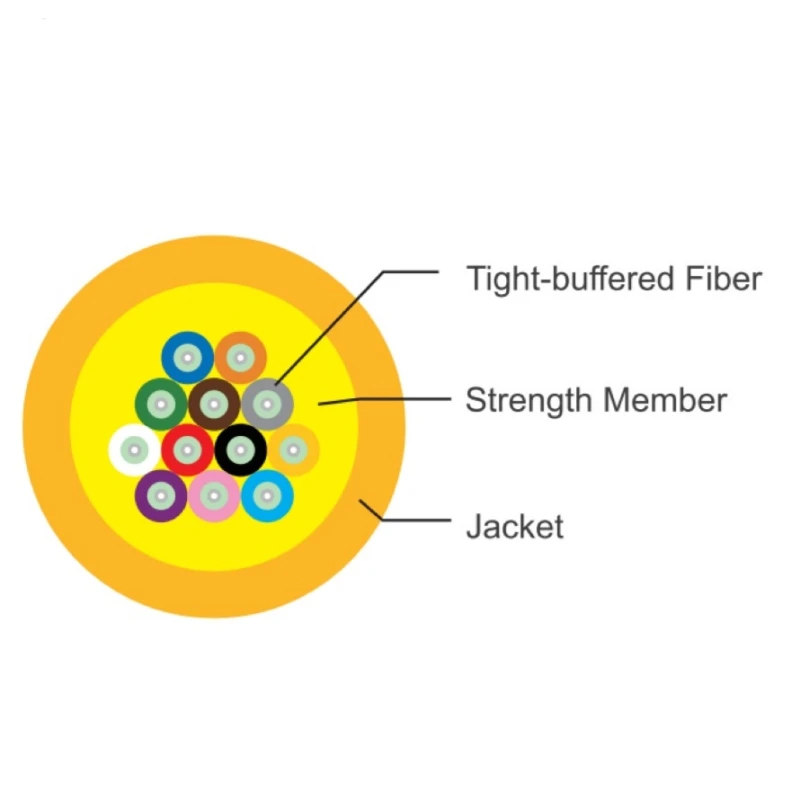

Multi-Purpose Distribution cable use several Φ900µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft,flexible,easy to lay and splice,and with big capacity data transmission
Indoor any purpose cable distribution.
Backbone distribution cable in a building.
Multi optical fiber jumper.
| Items | Parameters | ||||||
|---|---|---|---|---|---|---|---|
| Fiber Count | 4 | 6 | 8 | 12 | 16 | 24 | 48 |
| Outer Diameter (±0.2mm) | 4.8 | 5.2 | 6.2 | 6.8 | 7.4 | 8.2 | 12.5 |
| Normial Weight (kg/km) | 19 | 23 | 29 | 38 | 48 | 60 | 128 |
| Max. Tensile Strength (N)‑Short‑term | 90 | 110 | 160 | 200 | 220 | 240 | 520 |
| Max. Tensile Strength (N)‑Long‑term | 270 | 330 | 480 | 600 | 660 | 720 | 1200 |
| Min. Bending Radius‑Dynamic | 20D | 20D | 20D | 20D | 20D | 20D | 20D |
| Min. Bending Radius‑Static | 10D | 10D | 10D | 10D | 10D | 10D | 10D |
| Max.Crush Resistance (N/100mm²) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
