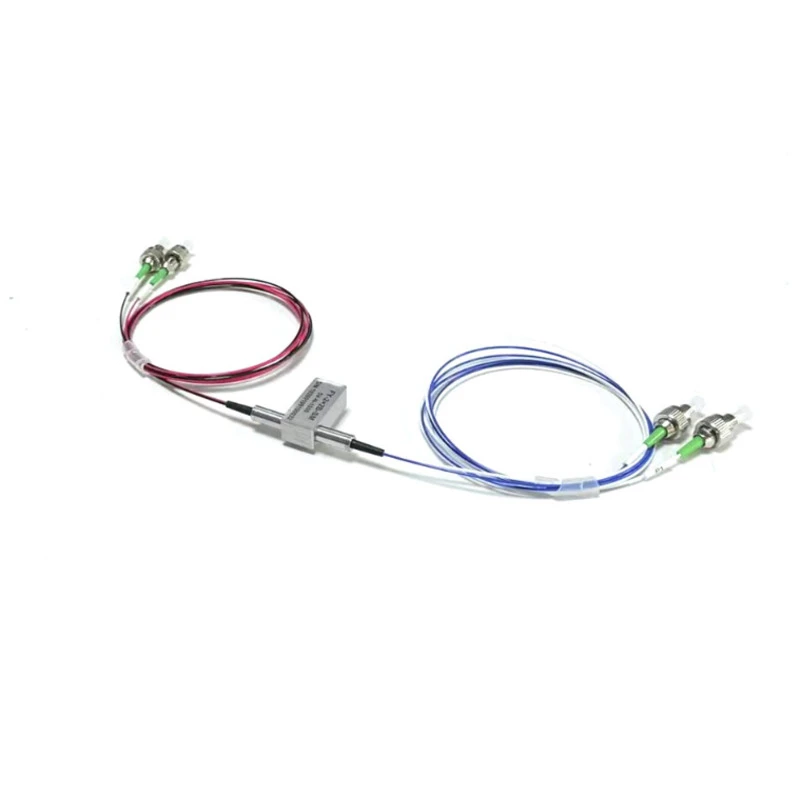

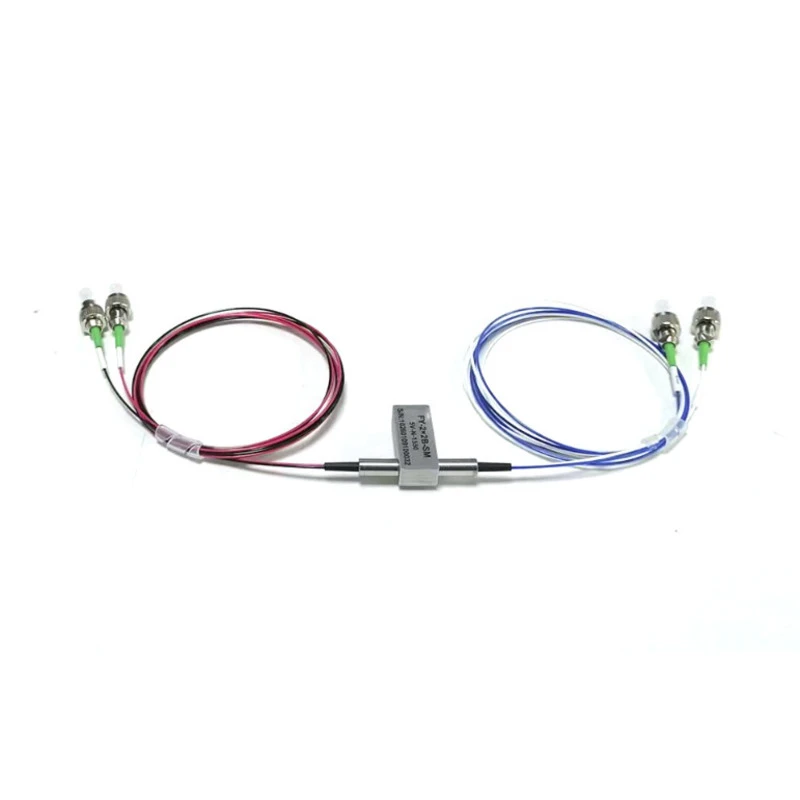

2x2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2B Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
Highly Stable & Reliable Short switching time
Compact design, Miniature size Low Insertion Loss
Wide operating wavelength Range Fail-Safe Latching and Non-latching
Single mode or Multimode optional
System Monitor Configurable OADM
Metropolitan Area Network R&D in Laboratory
| Parameter | 2×2B-MM/SM | |
|---|---|---|
| Wavelength Range（nm） | 850±40 | 1260~1650 |
| Operating Wavelength | 850 | 1310/1490/1550/1625/1650 |
| Insertion Loss（dB） | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss（dB） | MM≥30 SM≥50 | |
| Crosstalk（dB） | MM≥45 SM≥55 | |
| Polarization Dependent Loss（dB） | ≤0.05 | |
| WaveLength Dependent Loss（dB） | ≤0.25 | |
| Temperature Dependent Loss（dB） | ≤0.25 | |
| Repeatability（dB） | ≤±0.02 | |
| Power Supply（V） | 3.0 or 5.0 | |
| Lifetime（time） | ≥10^7 | |
| Switch Time（ms） | ≤8 | |
| Transmission Power（mW） | ≤500 | |
| Operating Temperature(℃) | -20~+70 | |
| Storage Temperature(℃) | -40~+85 | |
| Dimension（mm） | （L）27.0×（W）12.0×(H)8.2 | |
