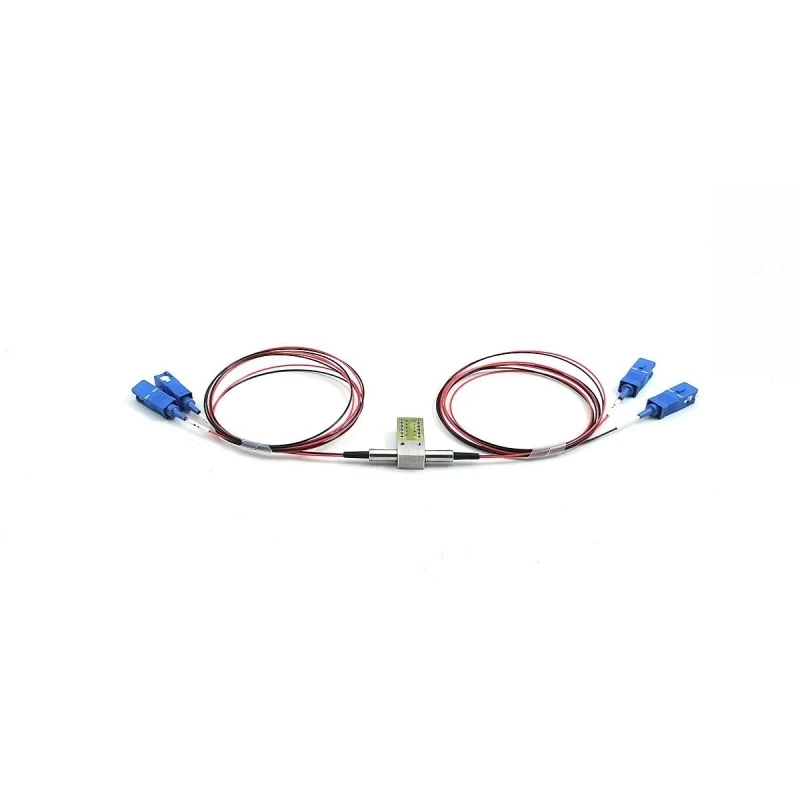

2x2 Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2 Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.
Low Insertion loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System
| Parameters | 2×2‑MM/SM (850±40) |
2×2‑MM/SM (1260~1650) |
|---|---|---|
| Wavelength Range(nm) | 850±40 | 1260~1650 |
| Operating Wavelength(nm) | 850±40 | 1310/1490/1550/1625/1650 |
| Insertion Loss(dB) | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss(dB) | MM≥30 | SM≥50 |
| Crosstalk(dB) | MM≥65 | SM≥70 |
| Polarization Dependent Loss(dB) | ≤0.05 | ≤0.05 |
| WaveLength Dependent Loss(dB) | ≤0.25 | ≤0.25 |
| Temperature Dependent Loss(dB) | ≤0.25 | ≤0.25 |
| Repeatability(dB) | ≤±0.02 | ≤±0.02 |
| Power Supply(V) | 3.0 or 5.0 | 3.0 or 5.0 |
| Lifetime(time) | ≥10^7 | ≥10^7 |
| Switch Time(ms) | ≤8 | ≤8 |
| Transmission Power(mW) | ≤500 | ≤500 |
| Operating Temperature(℃) | -20~+70 | -20~+70 |
| Storage Temperature(℃) | -40~+85 | -40~+85 |
| Weight(g) | 16 | 16 |
| Dimension(mm) | (L)28.0×(W)12.6×(H)8.0 | (L)28.0×(W)12.6×(H)8.0 |
