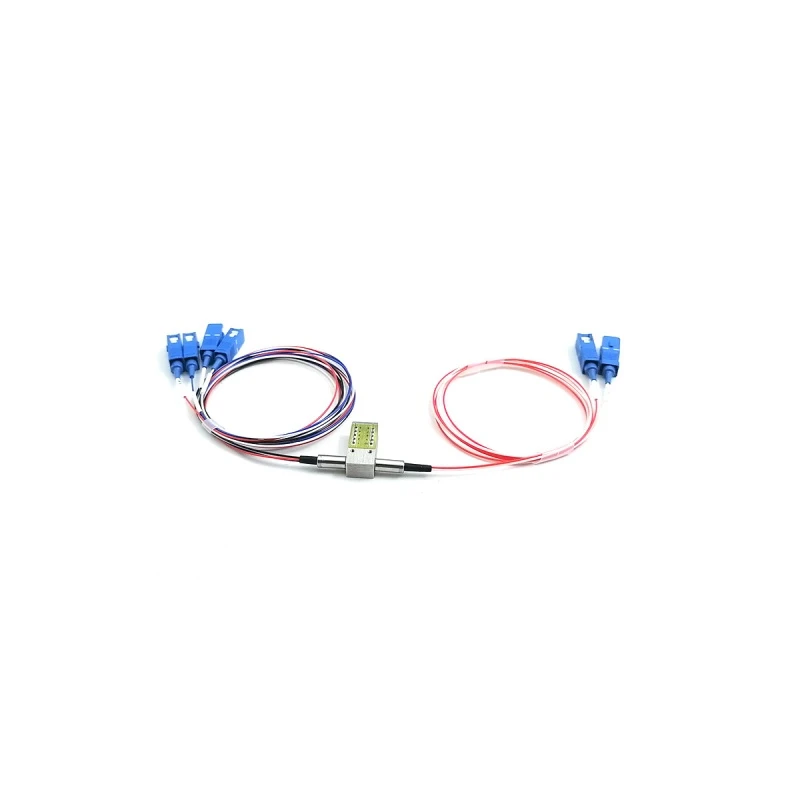

D1x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.
Low Insertion loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System
| Parameters | D1×2 (850±40) |
D1×2 (1260~1650) |
|---|---|---|
| Wavelength Range(nm) | 850±40 | 1260~1650 |
| Operating Wavelength(nm) | 850/1300 | 1310/1550 |
| Insertion Loss(dB) | Typ:1.0 Max:1.2 | Typ:1.0 Max:1.2 |
| Return Loss(dB) | MM≥30 SM≥50 | MM≥30 SM≥50 |
| Crosstalk(dB) | MM≥35 SM≥55 | MM≥35 SM≥55 |
| Polarization Dependent Loss(dB) | ≤0.05 | ≤0.05 |
| WaveLength Dependent Loss(dB) | ≤0.25 | ≤0.25 |
| Temperature Dependent Loss(dB) | ≤0.25 | ≤0.25 |
| Repeatability(dB) | ≤±0.02 | ≤±0.02 |
| Power Supply(V) | 3.0 or 5.0 | 3.0 or 5.0 |
| Lifetime(time) | ≥10^7 | ≥10^7 |
| Switch Time(ms) | ≤8 | ≤8 |
| Transmission Power(mW) | ≤500 | ≤500 |
| Operating Temperature(℃) | -20~+70 | -20~+70 |
| Storage Temperature(℃) | -40~+85 | -40~+85 |
| Weight(g) | 16 | 16 |
| Dimension(mm) | (L)27.0×(W)12.6×(H)8.2(±0.2mm) customization is available. | (L)27.0×(W)12.6×(H)8.2(±0.2mm) customization is available. |
